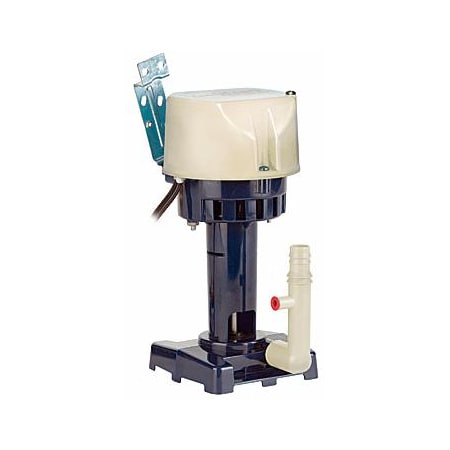

Little Giant CP Series 5.1 GPM 1/70 HP Evaporative Cooler / Swamp Cooler Pump (9.5' Lift)
Model: 540005|Item: bci912251
from theCP Series Collection
Details
Product Information:
- Little Giant CP Series Evaporative Cooler Pump: Replacement unit for OEM equipment (5,000
- Multi-Application Use: Evaporative coolers, swamp coolers, sales displays, laboratories and water bath circulation
- Heavy-Duty 1/70 HP Dual-Copper Coil, Concentric Fan-Cooled Motor: Thermally protected and Moisture proof winding for longevity
- Flame Retardant Thermal Plastic Housing Motor Cover and Volute: Minimizes corrosion compared to metal body pumps
- Low Level Pump Down and Recovery: Allows this pump to prime fast and get the water pumping
- 3-Way Universal Mounting Configuration: Top/Motor cap, Column (existing bracket) or Side Mounting with bracket (included)
- 90: Works with the most common discharge sizes in the industry
- Oversized Sleeve Bearings and Corrosion Resistant Steel Shaft: Robust engineering for demanding HVAC applications
- Removable Base Plate, Inlet Screen and Discharge Adapter
- Makes this pump easy to install, clean and service
- 4-Foot Power Cord - Liquid Temps Up to 120F
- 1 Year Warranty
Specifications
Dimensions and Measurements
Cord Length | 4 ft. |
Cord Length (ft) | 4 ft. |
Flow Rate (GPM) | 5.1 |
Flow Rate by Feet of Head | 307 gal / 1 ft, 265 gal / 3 ft, 213 gal / 5 ft |
Height | 9 in. |
Length | 4.25 in. |
Outlet Diameter | 0.5 in. |
Product Weight | 3 lbs. |
Shut Off Height | 9.5 in. |
Shut Off Pressure | 4.1 |
Width | 4.25 in. |
Dimensions and Measurements
Cord Length | 4 ft. |
Cord Length (ft) | 4 ft. |
Flow Rate (GPM) | 5.1 |
Flow Rate by Feet of Head | 307 gal / 1 ft, 265 gal / 3 ft, 213 gal / 5 ft |
Height | 9 in. |
Length | 4.25 in. |
Outlet Diameter | 0.5 in. |
Product Weight | 3 lbs. |
Shut Off Height | 9.5 in. |
Shut Off Pressure | 4.1 |
Width | 4.25 in. |
Characteristics and Features
Automatic | No |
Configuration | Evaporative Cooler Pump |
Housing Material | Thermoplastic |
Impeller Material | Nylon |
Material | Plastic, Steel |
Shutoff Head in Feet | 9.5 |
Submersible | No |
Characteristics and Features
Automatic | No |
Configuration | Evaporative Cooler Pump |
Housing Material | Thermoplastic |
Impeller Material | Nylon |
Material | Plastic, Steel |
Shutoff Head in Feet | 9.5 |
Submersible | No |
Electrical and Operational Information
Amperage | 0.8 |
Frequency | 60 Hertz |
Horsepower | .014 |
Maximum Operating Pressure (PSI) | 4.1 |
Voltage | 120 |
Wattage | 70 |
Electrical and Operational Information
Amperage | 0.8 |
Frequency | 60 Hertz |
Horsepower | .014 |
Maximum Operating Pressure (PSI) | 4.1 |
Voltage | 120 |
Wattage | 70 |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
