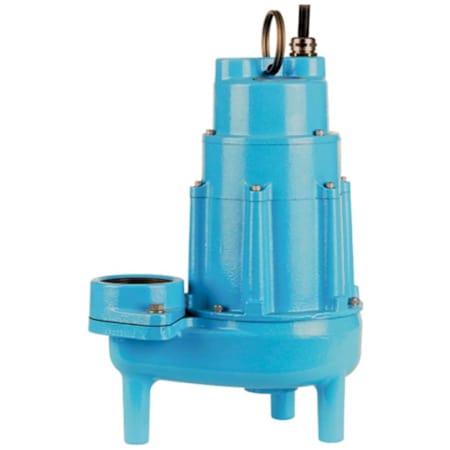

Little Giant 20E-CIM - 2 HP Cast Iron Effluent Pump (Non-Automatic) (200-208V 3-Phase)
Model: 520225|Item: bci2130450
from the20E Collection
Details
Features:
- ***NON-AUTOMATIC - Requires Control Panel***
- Little Giant 20E-CIM - 2 HP Cast Iron Effluent Pump (200-208V 3-Phase): Continuous duty rated for high-flow and high-head applications
- Epoxy Coated Cast Iron Pump Housing w/ 2" Discharge: Minimizes rust and corrosion to extend overall pump life
- 2 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw (13.1-Amps full load)
- Cooler running motor which extends the life of the pump
- Epoxy Coated Cast Iron Volute w/ Cast Iron Impeller: Non-clogging design passes up to 3/4" spherical solids
- Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection is harsh wastewater conditions
- Upper and Lower Ball Bearings: Minimizes friction while providing smooth and quiet operation
- Stainless Steel Screws, Bolts and Handle: Designed to prevent rust and corrosion
- 20-Foot SJTW-A Power Cord w/ Bare Leads (No Plug)
- 110' Max Shutoff Head
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 20 in. |
Depth | 12.92 in. |
Discharge Diameter | 1.25 in. |
Flow Rate by Feet of Head | 110 gal / 40 ft, 135 gal / 20 ft, 89 gal / 60 ft, 62 gal / 80 ft, 125 gal / 30 ft |
Height | 17.75 in. |
Length | 12.93 in. |
Maximum Diameter Solids | .75, 0.75 in. |
Maximum Head Height | 110 in. |
Minimum Head Height | 20 in. |
Product Weight | 92 lbs. |
Shut Off Height | 110 in. |
Shut Off Pressure | 47.6 |
Water Connection | 2" |
Water Pressure (Max) | 47.6 PSI |
Width | 8.42 in. |
Dimensions and Measurements
Cord Length | 20 in. |
Depth | 12.92 in. |
Discharge Diameter | 1.25 in. |
Flow Rate by Feet of Head | 110 gal / 40 ft, 135 gal / 20 ft, 89 gal / 60 ft, 62 gal / 80 ft, 125 gal / 30 ft |
Height | 17.75 in. |
Length | 12.93 in. |
Maximum Diameter Solids | .75, 0.75 in. |
Maximum Head Height | 110 in. |
Minimum Head Height | 20 in. |
Product Weight | 92 lbs. |
Shut Off Height | 110 in. |
Shut Off Pressure | 47.6 |
Water Connection | 2" |
Water Pressure (Max) | 47.6 PSI |
Width | 8.42 in. |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Configuration | Sump / Effluent Pump |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Manual Override | Yes |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Mechanical Seal Material | Ceramic Carbon |
Shutoff Head in Feet | 110 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Configuration | Sump / Effluent Pump |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Manual Override | Yes |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Mechanical Seal Material | Ceramic Carbon |
Shutoff Head in Feet | 110 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 13.1 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Horsepower | 2 |
Maximum Fluid Temperature | 140 °F |
Starting Amps | 32 Amps |
Voltage | 208 |
Electrical and Operational Information
Amperage | 13.1 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Horsepower | 2 |
Maximum Fluid Temperature | 140 °F |
Starting Amps | 32 Amps |
Voltage | 208 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
