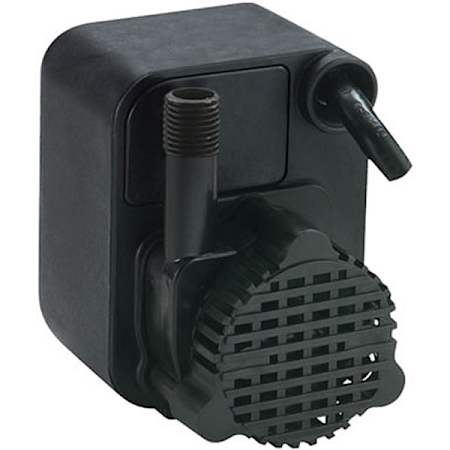

Little Giant 2.8 GPM 1/125 HP Epoxy Encapsulated Submersible Pump
Model: 518200|Item: bci912508
$183.00
Finish: Steel -
Special Order
Details
Product Information:
- PE-1 Series Epoxy Encapsulated Direct Drive Pump
- 1/125 HP Epoxy Encapsulated Direct Drive Motor
- Polyester Housing
- Polypropylene Volute
- Nitrile Shaft Seal
- Snap Off Screen Covers Intake
- UL and CSA Listed
- Additional Specs:
: For submersible use in water transfer, recirculation and displays
: Designed for commercial, industrial, and home use
: Designed for continuous duty, submersible use only
: Capacity: 170 GPH @ 1'
: Shut Off: 7'
: Liquid Temperature: Up to 120°F
: Discharge: 1/4" MNPT (accepts 1/2" I.D. tubing)
: Intake: Smooth Sump with Screen
: Impeller: Polypropylene
: Cord: 6'
Dimensions and Measurements
Cord Length | 6 in. |
Depth | 3.5 in. |
Discharge Diameter | 0.25 in. |
Flow Rate (GPM) | 2.8 |

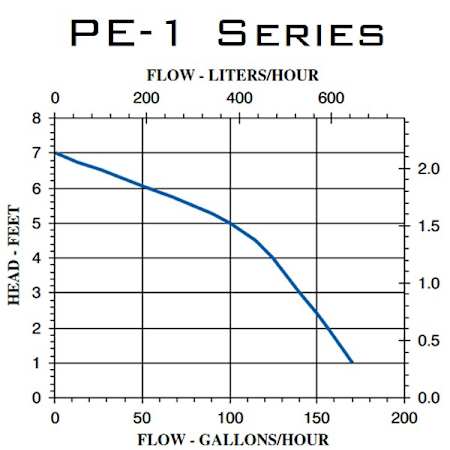

Flow Rate by Feet of Head | 100 gal / 5 ft, 170 gal / 1 ft, 140 gal / 3 ft |
Height | 3.5 in. |
Length | 3.6 in. |
Outlet Diameter | 0.25 in. |
Product Weight | 3 lbs. |
Shut Off Height | 7 in. |
Shut Off Pressure | 3 |
Width | 2.8 in. |
Dimensions and Measurements
Cord Length | 6 in. |
Depth | 3.5 in. |
Discharge Diameter | 0.25 in. |
Flow Rate (GPM) | 2.8 |
Flow Rate by Feet of Head | 100 gal / 5 ft, 170 gal / 1 ft, 140 gal / 3 ft |
Height | 3.5 in. |
Length | 3.6 in. |
Outlet Diameter | 0.25 in. |
Product Weight | 3 lbs. |
Shut Off Height | 7 in. |
Shut Off Pressure | 3 |
Width | 2.8 in. |
Characteristics and Features
Configuration | Submersible Pump |
Handles Solids | No |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Material | Plastic, Rubber |
Shutoff Head in Feet | 7 |
Submersible | Yes |
Characteristics and Features
Configuration | Submersible Pump |
Handles Solids | No |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Material | Plastic, Rubber |
Shutoff Head in Feet | 7 |
Submersible | Yes |
Electrical and Operational Information
Amperage | 0.6 |
Frequency | 60 Hertz |
Horsepower | 0.008 |
Maximum Operating Pressure (PSI) | 3 |
Voltage | 120 |
Wattage | 36 |
Electrical and Operational Information
Amperage | 0.6 |
Frequency | 60 Hertz |
Horsepower | 0.008 |
Maximum Operating Pressure (PSI) | 3 |
Voltage | 120 |
Wattage | 36 |
Warranty and Product Information
CARB approved | Yes |
Certifications | UL, CSA |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
CARB approved | Yes |
Certifications | UL, CSA |
Manufacturer Warranty | 1 Year |
