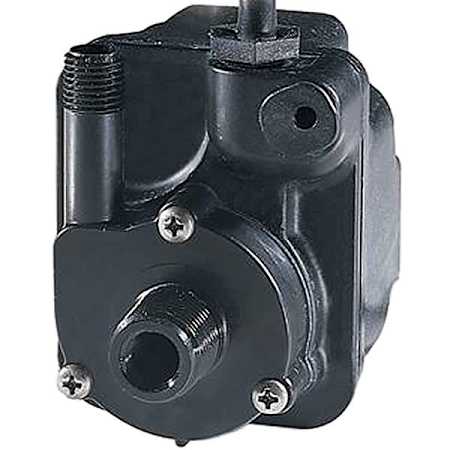

Little Giant 2.8 GPM 1/125 HP Dual-Purpose Epoxy Encapsulated (Potted) Pump
Model: 518087|Item: bci911906
$149.42
Finish: Black -
Special Order
Details
Product Information:
- Little Giant 1-EA Series Epoxy Encapsulated Direct Drive Pump
- For water transfer/recirculation/displays and machine tool Coolant
- For Submersible or In-Line Use
- 1/125 HP Epoxy Encapsulated Motor
- Glass-Filled Polyester Housing
- Epoxy Coated Cast Aluminum Cover
- Nylon Volute
- Viton Shaft Seal
- UL and CSA Listed
- Additional Specs:
- Capacity: 170 GPH @ 1'
- Shut Off: 7'
- Liquid Temperature: Up to 100°F
- Discharge: 1/4" MNPT
- Intake: 1/2" MNPT and 1/4" FNPT
- Impeller: Nylon
- Cord: 10'
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 3.75 in. |
Discharge Diameter | 0.25 in. |
Flow Rate (GPM) | 2.8 |
Flow Rate by Feet of Head | 170 gal / 1 ft, 140 gal / 3 ft, 100 gal / 5 ft |
Height | 4.5 in. |
Inlet Diameter | 0.5 in. |
Length | 6.25 in. |
Outlet Diameter | 0.25 in. |
Product Weight | 3.17 lbs. |
Shut Off Height | 7 in. |
Shut Off Pressure | 3 |
Width | 6.25 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Depth | 3.75 in. |
Discharge Diameter | 0.25 in. |
Flow Rate (GPM) | 2.8 |
Flow Rate by Feet of Head | 170 gal / 1 ft, 140 gal / 3 ft, 100 gal / 5 ft |
Height | 4.5 in. |
Inlet Diameter | 0.5 in. |
Length | 6.25 in. |
Outlet Diameter | 0.25 in. |
Product Weight | 3.17 lbs. |
Shut Off Height | 7 in. |
Shut Off Pressure | 3 |
Width | 6.25 in. |
Characteristics and Features
Configuration | Dual Purpose |
Handles Solids | No |
Housing Material | Aluminum |
Impeller Material | Nylon |
Material | Nylon, Rubber, Aluminum |
Shutoff Head in Feet | 7 |
Submersible | Yes |
Characteristics and Features
Configuration | Dual Purpose |
Handles Solids | No |
Housing Material | Aluminum |
Impeller Material | Nylon |
Material | Nylon, Rubber, Aluminum |
Shutoff Head in Feet | 7 |
Submersible | Yes |
Electrical and Operational Information
Amperage | 0.3 |
Frequency | 60 Hertz |
Horsepower | 0.008 |
Voltage | 120 |
Wattage | 36 |
Electrical and Operational Information
Amperage | 0.3 |
Frequency | 60 Hertz |
Horsepower | 0.008 |
Voltage | 120 |
Wattage | 36 |
Warranty and Product Information
CARB approved | Yes |
Certifications | UL, CSA |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
CARB approved | Yes |
Certifications | UL, CSA |
Manufacturer Warranty | 1 Year |
