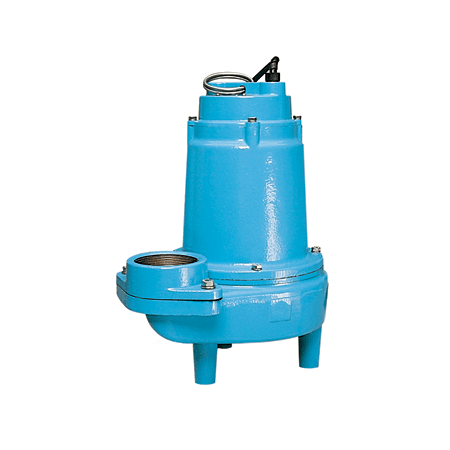

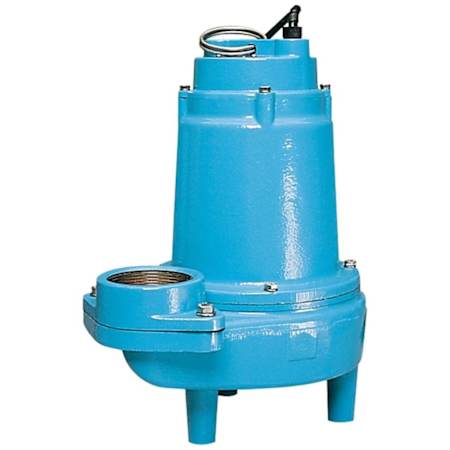

Little Giant 16S-CIM - 1 HP Cast Iron Sewage Pump (3") with 20' Cord (Non-Automatic) (200-208V 3-Phase)
Model: 514750|Item: bci2130491
from the16S Collection
$1,588.53
Special Order
Options
20-Ft Cord / 380/460V 3-Phase
20-Ft Cord / 200/208 VAC
$1,444.72
20-Ft Cord / 200-208V 1-Phase
$1,441.50
40-Ft Cord / 230V 1-Phase
$1,283.50
20-Ft Cord / 200/208V 3-Phase
$1,475.00
20-Ft Cord / 380/460V 3-Phase
$1,588.53
20-Ft Cord / 230V 3-Phase
$1,441.50
20-Ft Cord / 380/460V 3-Phase
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-Details
Features:
- ***NON-AUTOMATIC - Requires Float Switch or Controller***
- Little Giant 16S-CIM - 1 HP Sewage Pump (200-280V 3-Phase)
- For use in residential, commercial, industrial and agricultural applications
- Ideal for light to medium transfer demands
- Epoxy Powder Coated Cast Iron Construction: Provides excellent corrosion-resistance and durability
- Heavy-Duty 1 HP Three-Phase Motor
- Energy saving design w/ low amp draw (6.3-Amps full load)
- Cooler running motor which extends the life of the pump
- 3" FNPT Threaded Discharge: Easily connect to your existing discharge without any changes
- Epoxy Coated Cast Iron Volute w/ Vortex Style Cast Iron Impeller: Non-clogging design passes up to 2" spherical solids
- Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection is harsh wastewater conditions
- 420 Stainless Steel Shaft w/ Upper/Lower Ball Bearings: Minimizes friction while providing smooth and quiet operation
- 20' STW Power Cord
- 35' Max Shutoff Head
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 240 in. |
Depth | 14.1 in. |
Discharge Diameter | 2 in. |

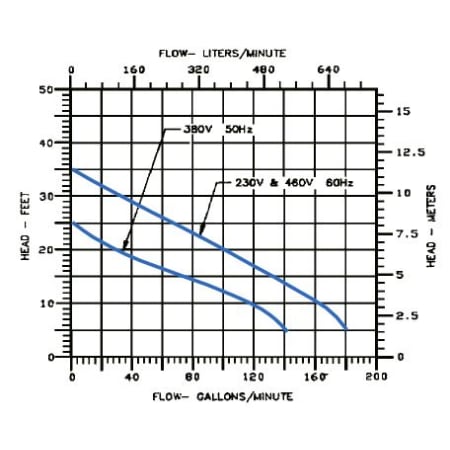

Flow Rate by Feet of Head | 40 gal / 30 ft, 100 gal / 20 ft, 160 gal / 10 ft |
Height | 17.2 in. |
Length | 14.1 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 35 ft. |
Minimum Head Height | 10 ft. |
Product Weight | 88 lbs. |
Shut Off Height | 35 in. |
Shut Off Pressure | 15.1 |
Water Connection | 2" |
Water Pressure (Max) | 15.1 PSI |
Width | 9.9 in. |
Dimensions and Measurements
Cord Length | 240 in. |
Depth | 14.1 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 40 gal / 30 ft, 100 gal / 20 ft, 160 gal / 10 ft |
Height | 17.2 in. |
Length | 14.1 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 35 ft. |
Minimum Head Height | 10 ft. |
Product Weight | 88 lbs. |
Shut Off Height | 35 in. |
Shut Off Pressure | 15.1 |
Water Connection | 2" |
Water Pressure (Max) | 15.1 PSI |
Width | 9.9 in. |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Configuration | Submersible Pump |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Shutoff Head in Feet | 35 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Configuration | Submersible Pump |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Shutoff Head in Feet | 35 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 6.3 |
Electrical Phases | 3, 1 |
Frequency | 60 Hertz |
Horsepower | 1 |
Maximum Fluid Temperature | 140 °F |
Voltage | 208 |
Electrical and Operational Information
Amperage | 6.3 |
Electrical Phases | 3, 1 |
Frequency | 60 Hertz |
Horsepower | 1 |
Maximum Fluid Temperature | 140 °F |
Voltage | 208 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
Commercial Warranty | 1 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
Commercial Warranty | 1 Year |
Manufacturer Warranty | 3 Year |
