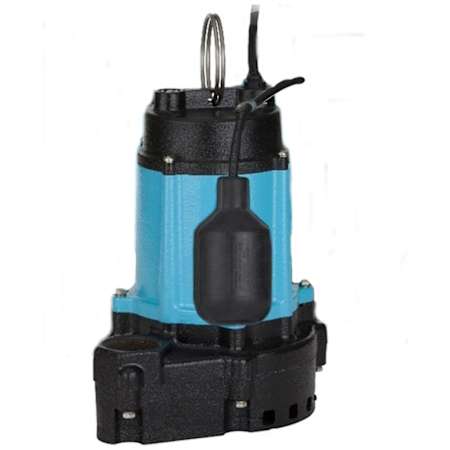

Little Giant 10EC-CIA-RF - 1/2 HP Cast Iron Submersible Sump Pump with Piggyback Tether Float (20' Cord)
Model: 510852|Item: bci3798901
from the10 Ec Series Collection
Details
Features:
- Automatic Submersible Cast Iron Sump Pump: Continuous duty rated for sump and light effluent applications
- Cast Iron Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life
- 1/2 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw
- Cooler running motor which extends the life of the pump
- Piggy-Back Tether Float Switch: Provides reliable automatic operation
- Vortex Style Nylon Impeller: Non-clogging design passes up to 1/2" spherical solids
- No Sheet Metal Parts To Rust Or Corrode: Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings: Minimizes friction while providing smooth and quiet operation
- 20-Foot Power Cord
- 36' Max Shutoff Head
- 2-Year Limited Warranty
Dimensions and Measurements
Cord Length | 20 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 67 gal / 5 ft, 52 gal / 15 ft |
Height | 11.28 in. |
Length | 8.9 in. |
Maximum Diameter Solids | 0.5 in. |
Product Weight | 30 lbs. |
Width | 10.66 in. |
Dimensions and Measurements
Cord Length | 20 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 67 gal / 5 ft, 52 gal / 15 ft |
Height | 11.28 in. |
Length | 8.9 in. |
Maximum Diameter Solids | 0.5 in. |
Product Weight | 30 lbs. |
Width | 10.66 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | Yes |
Material | Cast Iron |
Shutoff Head in Feet | 36 |
Water Connection Type | FNPT |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | Yes |
Material | Cast Iron |
Shutoff Head in Feet | 36 |
Water Connection Type | FNPT |
Electrical and Operational Information
Amperage | 6.5 |
Backup GPH @ 0 feet | 4020 GPH |
Backup GPH @ 10 feet | 3420 GPH |
Backup GPH @ 15 feet | 3120 GPH |
Backup GPH @ 20 feet | 1680 GPH |
Backup GPH @ 5 feet | 4020 GPH |
Horsepower | 0.5 |
Voltage | 120 |
Wattage | 750.00 |
Electrical and Operational Information
Amperage | 6.5 |
Backup GPH @ 0 feet | 4020 GPH |
Backup GPH @ 10 feet | 3420 GPH |
Backup GPH @ 15 feet | 3120 GPH |
Backup GPH @ 20 feet | 1680 GPH |
Backup GPH @ 5 feet | 4020 GPH |
Horsepower | 0.5 |
Voltage | 120 |
Wattage | 750.00 |
Warranty and Product Information
Manufacturer Warranty | 2 |
Warranty and Product Information
Manufacturer Warranty | 2 |
