Little Giant

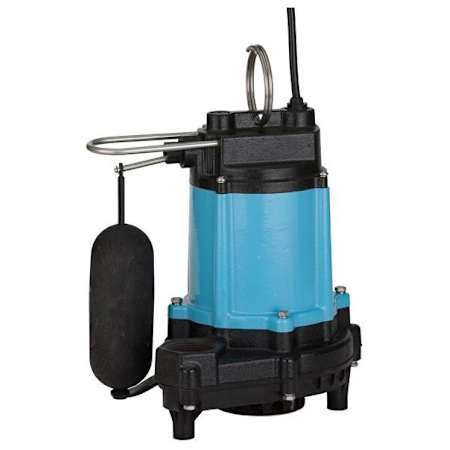

Little Giant 10EC-CIA-SFS - 1/2 HP Polypropylene and Cast Iron Submersible Sump Pump with Vertical Float Switch N/A
Alternate Image
Little Giant 10EC-CIA-SFS - 1/2 HP Polypropylene and Cast Iron Submersible Sump Pump with Vertical Float Switch N/A
Alternate Image

Little Giant 10EC-CIA-SFS - 1/2 HP Polypropylene and Cast Iron Submersible Sump Pump with Vertical Float Switch

Model: 510803
|
Item: bci3798899

$447.72
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Features:

  • Automatic Submersible Cast Iron Sump Pump: Continuous duty rated for sump and light effluent applications

  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life

  • 1/2 HP PSC Motor w/ Thermal Overload Protection
    • Energy saving design w/ low amp draw
    • Cooler running motor which extends the life of the pump

  • Integral Snap-Action Vertical Float Switch: Double-seal design minimizes switch corrosion

  • Vortex Style Nylon Impeller: Non-clogging design passes up to 1/2" spherical solids

  • No Sheet Metal Parts To Rust Or Corrode: Stainless steel intake plate, screws, bolts and handle

  • Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection for extended pump life

  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings: Minimizes friction while providing smooth and quiet operation

  • 10-Foot Power Cord

  • 36' Max Shutoff Head

  • 2-Year Limited Warranty

Additional Little Giant Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5 in.
Flow Rate by Feet of Head
67 gal / 5 ft
Height
11.08 in.
Length
10.7 in.
Product Weight
27.5 lbs.
Width
8.79 in.

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5 in.
Flow Rate by Feet of Head
67 gal / 5 ft
Height
11.08 in.
Length
10.7 in.
Product Weight
27.5 lbs.
Width
8.79 in.

Characteristics and Features

Automatic
Yes
Base Material
Plastic
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Nylon
Manual Override
No
Shutoff Head in Feet
36
Submersible
Yes
Water Connection Type
FNPT

Characteristics and Features

Automatic
Yes
Base Material
Plastic
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Nylon
Manual Override
No
Shutoff Head in Feet
36
Submersible
Yes
Water Connection Type
FNPT

Electrical and Operational Information

Amperage
6.5
Backup GPH @ 0 feet
4020 GPH
Backup GPH @ 10 feet
3420 GPH
Backup GPH @ 15 feet
3120 GPH
Backup GPH @ 20 feet
1680 GPH
Backup GPH @ 5 feet
4020 GPH
Horsepower
0.5
Voltage
120
Wattage
750.00

Electrical and Operational Information

Amperage
6.5
Backup GPH @ 0 feet
4020 GPH
Backup GPH @ 10 feet
3420 GPH
Backup GPH @ 15 feet
3120 GPH
Backup GPH @ 20 feet
1680 GPH
Backup GPH @ 5 feet
4020 GPH
Horsepower
0.5
Voltage
120
Wattage
750.00

Warranty and Product Information

Manufacturer Warranty
2

Warranty and Product Information

Manufacturer Warranty
2
