Little Giant

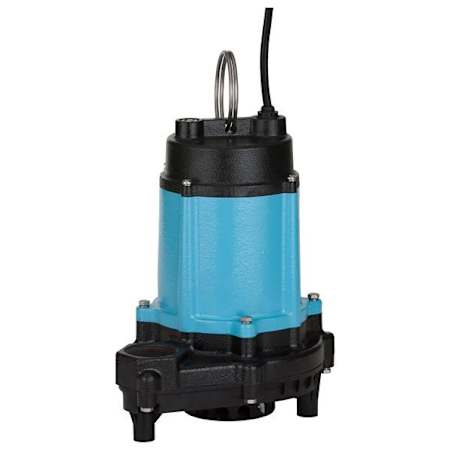

Little Giant 10EC-CIM - 1/2 HP Polypropylene and Cast Iron Submersible Sump Pump (Non-Automatic) N/A
Alternate Image
Little Giant 10EC-CIM - 1/2 HP Polypropylene and Cast Iron Submersible Sump Pump (Non-Automatic) N/A
Alternate Image

Little Giant 10EC-CIM - 1/2 HP Polypropylene and Cast Iron Submersible Sump Pump (Non-Automatic)

Model: 510801
|
Item: bci5171525

$625.60
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Features:

  • *Non-Automatic* Submersible Cast Iron Sump Pump: Continuous duty rated for sump and light effluent applications

  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life

  • 1/2 HP PSC Motor w/ Thermal Overload Protection
    • Energy saving design w/ low amp draw
    • Cooler running motor which extends the life of the pump

  • Integral Snap-Action Vertical Float Switch: Double-seal design minimizes switch corrosion

  • Vortex Style Nylon Impeller: Non-clogging design passes up to 1/2" spherical solids

  • No Sheet Metal Parts To Rust Or Corrode: Stainless steel intake plate, screws, bolts and handle

  • Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection for extended pump life

  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings: Minimizes friction while providing smooth and quiet operation

  • 10-Foot Power Cord

  • 36' Max Shutoff Head

  • 2-Year Limited Warranty

Additional Little Giant Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.5, 2 in.
Height
36 in.
Length
8.9 in.
Product Weight
300 lbs.
Width
30 in.

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.5, 2 in.
Height
36 in.
Length
8.9 in.
Product Weight
300 lbs.
Width
30 in.

Characteristics and Features

Base Material
Plastic
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Nylon

Characteristics and Features

Base Material
Plastic
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Nylon

Electrical and Operational Information

Amperage
12.5
Backup GPH @ 0 feet
3120 GPH
Backup GPH @ 10 feet
2958 GPH
Backup GPH @ 15 feet
2820 GPH
Backup GPH @ 20 feet
2634 GPH
Backup GPH @ 5 feet
3060 GPH
Horsepower
0.5
Voltage
120

Electrical and Operational Information

Amperage
12.5
Backup GPH @ 0 feet
3120 GPH
Backup GPH @ 10 feet
2958 GPH
Backup GPH @ 15 feet
2820 GPH
Backup GPH @ 20 feet
2634 GPH
Backup GPH @ 5 feet
3060 GPH
Horsepower
0.5
Voltage
120

Warranty and Product Information

Manufacturer Warranty
3

Warranty and Product Information

Manufacturer Warranty
3
