Little Giant
Little Giant WCR-16GP - 1 HP Cast Iron Pre-Packaged Water Collection Grinder Pump (16G) System with PB Tether Float (20" x 30" - Poly Basin/Foam Cover) N/A
Alternate Image
Little Giant WCR-16GP - 1 HP Cast Iron Pre-Packaged Water Collection Grinder Pump (16G) System with PB Tether Float (20" x 30" - Poly Basin/Foam Cover) N/A
Alternate Image

Little Giant WCR-16GP - 1 HP Cast Iron Pre-Packaged Water Collection Grinder Pump (16G) System with PB Tether Float (20" x 30" - Poly Basin/Foam Cover)

Model: 509817
|
Item: bci5171407

$1,476.43
Special Order
placeholder
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Features:

  • Little Giant WCR-16GP - 1 HP Pre-Packaged Water Collection Grinder Pump System
    • For collection and removal of water run-off from low-lying problem areas
    • Requires no digging for system servicing - Installed flush with ground level

  • Continuous Duty Rated Automatic Submersible Grinder Pump
    • Epoxy powder coated cast iron construction
    • Provides excellent corrosion-resistance and durability

  • 27-Stationary and 8-Rotating Blade Cutting Mechanism (440 Stainless Steel): 3450 RPM design provides over 700k cuts per minute

  • Piggyback Tether Float Switch: Provides reliable automatic operation

  • Heavy-Duty 1 HP Single-Phase Motor
    • Class F motor for optimal power
    • Capacitor start, capacitor run design w/ internal overload protection

  • Silicone Carbide Mechanical Seal
    • Provides lower thermal expansion and higher abrasion resistance
    • Up to 6X longer life compared to carbon ceramic seals

  • 420 Stainless Steel Shaft w/ Upper/Lower Ball Bearings: Minimizes friction while providing smooth and quiet operation

  • Additional Features
    • 2" bulkhead fitting to easily route power cords out of the basin
    • Side outlets for discharge and electrical cords (20' Power Cord)

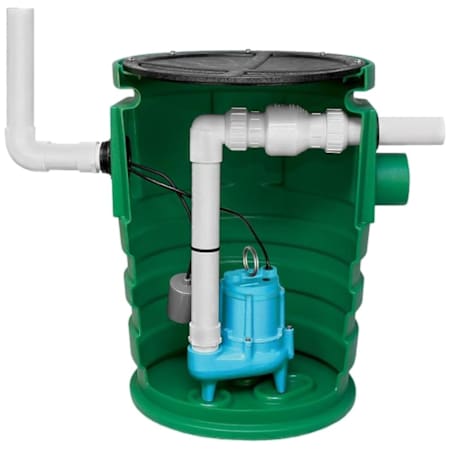

  • System Includes:
    • 20"x 30" Polyethylene Basin with stub out intake and 2" discharge
    • 1-Piece Structural Foam Bolt-on Cover
    • 16G-F151-20 - 1 HP Grinder Pump w/ piggyback mechanical float
    • 2" Check valve (940022)

  • 3-Year Limited Warranty

Additional Little Giant Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.5, 2 in.

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.5, 2 in.

Characteristics and Features

Base Material
Iron
Float Type
Tether Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
Yes
Mechanical Seal Material
Ceramic Carbon

Characteristics and Features

Base Material
Iron
Float Type
Tether Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
Yes
Mechanical Seal Material
Ceramic Carbon

Electrical and Operational Information

Amperage
12.5
Horsepower
1
Voltage
120

Electrical and Operational Information

Amperage
12.5
Horsepower
1
Voltage
120

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
