Little Giant

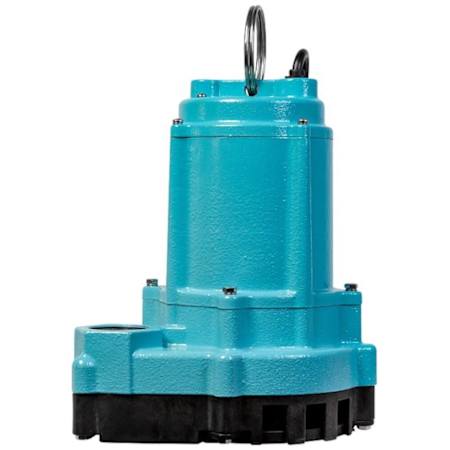

Little Giant 9EC-CIM - 4/10 HP Cast Iron Effluent Pump (Non-Automatic) (208/230V) N/A
Alternate Image
Little Giant 9EC-CIM - 4/10 HP Cast Iron Effluent Pump (Non-Automatic) (208/230V) N/A
Alternate Image

Little Giant 9EC-CIM - 4/10 HP Cast Iron Effluent Pump (Non-Automatic) (208/230V)

Model: 509807
|
Item: bci5171625

$1,013.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Features:

  • * 230V NON-AUTOMATIC - Float Switch Req'd For Auto Operation *

  • Submersible Cast Iron Effluent Pump: Continuous duty rated for sump and effluent applications

  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life

  • 4/10 HP PSC Motor w/ Thermal Overload Protection (208/230-Volt)
    • Energy saving design w/ low amp draw
    • Cooler running motor which extends the life of the pump

  • Vortex Style Nylon Impeller: Non-clogging design passes up to 3/4" solids

  • No Sheet Metal Parts To Rust Or Corrode: Stainless steel intake plate, screws, bolts and handle

  • Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection for extended pump life

  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings: Minimizes friction while providing smooth and quiet operation

  • 20-Foot Power Cord

  • 3-Year Limited Warranty

Additional Little Giant Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.5, 2 in.

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.5, 2 in.

Characteristics and Features

Base Material
Iron
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Mechanical Seal Material
Ceramic Carbon
Submersible
Yes

Characteristics and Features

Base Material
Iron
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Mechanical Seal Material
Ceramic Carbon
Submersible
Yes

Electrical and Operational Information

Amperage
4
Horsepower
0.4
Starting Amps
10 Amps
Voltage
208, 230

Electrical and Operational Information

Amperage
4
Horsepower
0.4
Starting Amps
10 Amps
Voltage
208, 230

Warranty and Product Information

Commercial Warranty
2 Year
Manufacturer Warranty
2 Year

Warranty and Product Information

Commercial Warranty
2 Year
Manufacturer Warranty
2 Year
