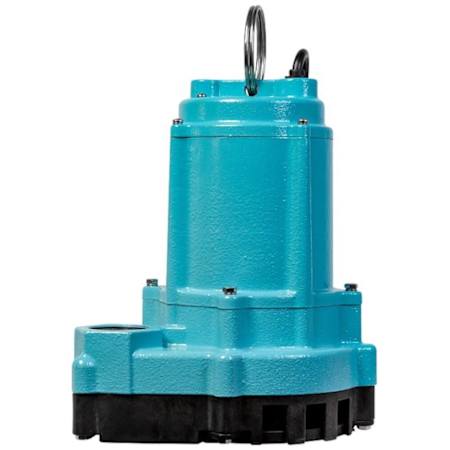

Little Giant 9EC-CIM - 4/10 HP Cast Iron Effluent Pump (Non-Automatic)
Model: 509806|Item: bci5171630
from the9EC Collection
$353.64
19 In Stock
Options
Manual Switch & 10' Cord
- Piggyback Flt & 20' Cord$454.10
- Piggyback Flt & 30' Cord$450.24
- 230V, Piggyback Fit, 20' Cord$484.26
- Snap-Action Float & 30' Cord$456.54
- Manual Switch & 10' Cord$353.64
- Manual Switch & 20' Cord$354.90
- Manual Switch & 30' Cord$370.86
- 230V, Manual Switch & 20' Cord$425.46
Manual Switch & 10' Cord
Free Shipping!
Leaves the Warehouse in 3 to 5 business days
-Details
Features:
- *** NON-AUTOMATIC - Float Switch Req'd For Auto Operation ***
- Submersible Cast Iron Effluent Pump: Continuous duty rated for sump and effluent applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life
- 4/10 HP PSC Motor w/ Thermal Overload Protection (115 Volt)
- Energy saving design w/ low amp draw
- Cooler running motor which extends the life of the pump
- Vortex Style Nylon Impeller: Non-clogging design passes up to 3/4" solids
- No Sheet Metal Parts To Rust Or Corrode: Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings: Minimizes friction while providing smooth and quiet operation
- 10-Foot Power Cord
- 3-Year Limited Warranty
Specifications
Dimensions and Measurements
Cord Length | 10 ft. |
Cord Length (ft) | 10 ft. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate (GPM) | 70 |
Dimensions and Measurements
Cord Length | 10 ft. |
Cord Length (ft) | 10 ft. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate (GPM) | 70 |
Characteristics and Features
Base Material | Iron |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Mechanical Seal Material | Ceramic Carbon |
Pump Material | Cast Iron |
Submersible | Yes |
Characteristics and Features
Base Material | Iron |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Mechanical Seal Material | Ceramic Carbon |
Pump Material | Cast Iron |
Submersible | Yes |
Electrical and Operational Information
Amperage | 7.5 |
Horsepower | 0.4 |
Starting Amps | 14.5 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 7.5 |
Horsepower | 0.4 |
Starting Amps | 14.5 Amps |
Voltage | 120 |
Warranty and Product Information
Commercial Warranty | 2 Year |
Manufacturer Warranty | 2 Year |
Warranty and Product Information
Commercial Warranty | 2 Year |
Manufacturer Warranty | 2 Year |
