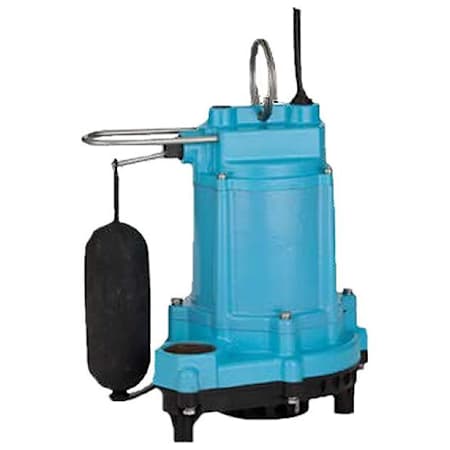

Little Giant 6EC-CIA-SFS - 1/3 HP Polypropylene and Cast Iron Submersible Sump Pump with Vertical Float Switch
Model: 506807|Item: bci3798884
from the6 Ec Series Collection
Details
Typical applications include commercial, industrial, and home uses where liquid must be transferred or recirculated.
Features:
- Automatic Submersible Sump Pump: Continuous duty rated for sump and light effluent applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life
- 1/3 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw
- Cooler running motor which extends the life of the pump
- Vertical Float Switch: Double-seal design minimizes switch corrosion
- Vortex Style Nylon Impeller: Non-clogging design passes up to 1/2" spherical solids
- No Sheet Metal Parts To Rust Or Corrode: Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings: Minimizes friction while providing smooth and quiet operation
- 10-Foot Power Cord
- 28' Max Shutoff Head
- 2-Year Limited Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 1.25, 1.5 in. |
Flow Rate by Feet of Head | 53 gal / 5 ft, 50 gal / 10 ft |
Height | 11.28 in. |
Length | 9.5 in. |
Product Weight | 27.5 lbs. |
Width | 8.79 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 1.25, 1.5 in. |
Flow Rate by Feet of Head | 53 gal / 5 ft, 50 gal / 10 ft |
Height | 11.28 in. |
Length | 9.5 in. |
Product Weight | 27.5 lbs. |
Width | 8.79 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Plastic |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Shutoff Head in Feet | 28 |
Water Connection Type | FNPT |
Characteristics and Features
Automatic | Yes |
Base Material | Plastic |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Shutoff Head in Feet | 28 |
Water Connection Type | FNPT |
Electrical and Operational Information
Amperage | 5 |
Backup GPH @ 0 feet | 3180 GPH |
Backup GPH @ 10 feet | 3000 GPH |
Backup GPH @ 15 feet | 2520 GPH |
Backup GPH @ 20 feet | 2040 GPH |
Backup GPH @ 5 feet | 3180 GPH |
Horsepower | 0.33 |
Voltage | 120 |
Wattage | 600.00 |
Electrical and Operational Information
Amperage | 5 |
Backup GPH @ 0 feet | 3180 GPH |
Backup GPH @ 10 feet | 3000 GPH |
Backup GPH @ 15 feet | 2520 GPH |
Backup GPH @ 20 feet | 2040 GPH |
Backup GPH @ 5 feet | 3180 GPH |
Horsepower | 0.33 |
Voltage | 120 |
Wattage | 600.00 |
Warranty and Product Information
Manufacturer Warranty | 2 |
Warranty and Product Information
Manufacturer Warranty | 2 |
