Little Giant

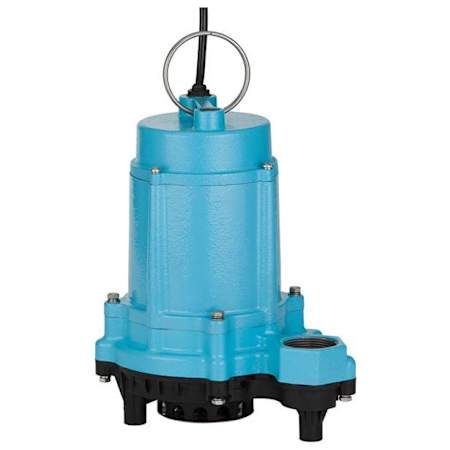

Little Giant 6EC-CIM - 1/3 HP Submersible Sump Pump (Non-Automatic) N/A
Little Giant 6EC-CIM - 1/3 HP Submersible Sump Pump (Non-Automatic) N/A
Alternate Image

Little Giant 6EC-CIM - 1/3 HP Submersible Sump Pump (Non-Automatic)

Model: 506801
|
Item: bci5171559

$241.01
59 In Stock

Options

Manual Valve & 10-Ft Cord
$241.01
Manual Valve & 20-Ft Cord
$264.00
Piggback Valve
$276.45
Snap-Action Valve & 10-Ft Cord
$220.50
Snap-Action Valve & 20-Ft Cord
$269.01
Cast Iron Base & Piggyback Flt
$330.60
placeholder
Free Shipping!
Leaves the Warehouse in 3 to 5 business days
-
Return & Shipping Details

Details

Typical applications include commercial, industrial, and home uses where liquid must be transferred or recirculated.

Features:

  • Manual Submersible Sump Pump - Non-Automatic: Continuous duty rated for sump and light effluent applications

  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life

  • 1/3 HP PSC Motor w/ Thermal Overload Protection
    • Energy saving design w/ low amp draw
    • Cooler running motor which extends the life of the pump

  • Vortex Style Nylon Impeller: Non-clogging design passes up to 1/2" spherical solids

  • No Sheet Metal Parts To Rust Or Corrode: Stainless steel intake plate, screws, bolts and handle

  • Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection for extended pump life

  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings: Minimizes friction while providing smooth and quiet operation

  • 10-Foot Power Cord

  • 28' Max Shutoff Head

  • 2-Year Limited Warranty

Additional Little Giant Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
6 in.
Discharge Diameter
1.25 in.
Flow Rate (GPM)
53
Length
20.5 in.
Product Weight
41.5 lbs.

Dimensions and Measurements

Cord Length
6 in.
Discharge Diameter
1.25 in.
Flow Rate (GPM)
53
Length
20.5 in.
Product Weight
41.5 lbs.

Characteristics and Features

Base Material
Plastic
Float Type
Vertical Switch
Housing Material
Cast Iron
Impeller Material
Nylon
Manual Override
No

Characteristics and Features

Base Material
Plastic
Float Type
Vertical Switch
Housing Material
Cast Iron
Impeller Material
Nylon
Manual Override
No

Electrical and Operational Information

Amperage
14
Backup GPH @ 0 feet
3180 GPH
Backup GPH @ 10 feet
3000 GPH
Backup GPH @ 15 feet
2520 GPH
Backup GPH @ 20 feet
2040 GPH
Backup GPH @ 5 feet
3180 GPH
Horsepower
0.33
Voltage
120

Electrical and Operational Information

Amperage
14
Backup GPH @ 0 feet
3180 GPH
Backup GPH @ 10 feet
3000 GPH
Backup GPH @ 15 feet
2520 GPH
Backup GPH @ 20 feet
2040 GPH
Backup GPH @ 5 feet
3180 GPH
Horsepower
0.33
Voltage
120

Warranty and Product Information

Manufacturer Warranty
2

Warranty and Product Information

Manufacturer Warranty
2
