Little Giant 50 GPM Automatic Submersible High Temperature Effluent Pump
Model: 506600|Item: bci912519
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details

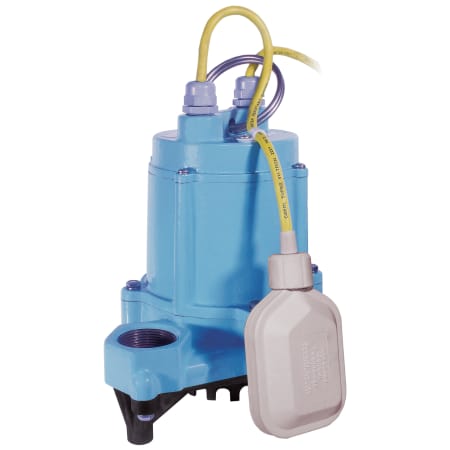

50 GPM Automatic Submersible High Temperature Effluent Pump
This high temperature version of the 6E Sump/Effluent Pump is capable of pumping heated liquid up to 200°F liquid. Uses include boiler blow-down sump pits, rendering plant wash-down sump pits, public utility underground transformer vaults, industrial steam cleaning sump pits, etc. These pumps handle liquids and solid waste materials up to 1/2" in diameter. Pumps feature a 1-1/2" discharge, with a lift of 20'. Cast iron housing and volute with protective epoxy coating, high-temperature thermoplastic base and vortex nylon impeller.
- Handles liquids up to 200° F
- 1/2" solids handling capability
- Cast iron pump housing with protective epoxy coating for corrosion resistance
- Oil-filled motor housing for lifetime lubrication and rapid heat dissipation
- Integral mechanical float switch
- Stainless steel screws, bolts and lifting ring to protect against corrosion
- Mechanical seals (stainless steel spring, Carbon and Ni-Resist faces) to assure maximum protection against pump failure
- Bearings: Upper and lower sintered sleeve bearings for extended motor life
- Thermal overload protection
- Automatic operation has 10" to 12" "On" level range
Dimensions and Measurements
Cord Length | 15 ft. |
Depth | 8.7 in. |
Discharge Diameter | 1.5 in. |

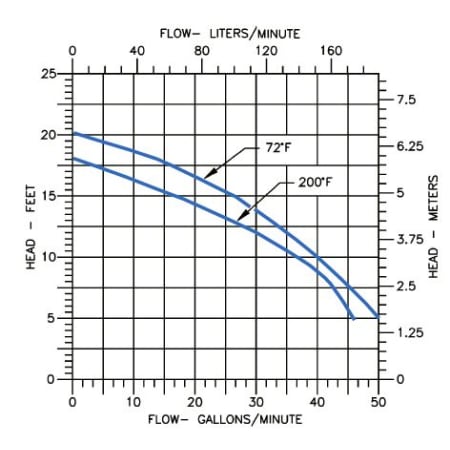

Flow Rate by Feet of Head | 42 gal / 10 ft, 50 gal / 5 ft, 27 gal / 15 ft |
Height | 10.9 in. |
Length | 8.8 in. |
Maximum Diameter Solids | 0.5 in. |
Maximum Head Height | 20 ft. |
Minimum Head Height | 5 ft. |
Product Weight | 32 lbs. |
Shut Off Height | 20 in. |
Shut Off Pressure | 8.7 |
Water Connection | 1-1/2" |
Water Pressure (Max) | 8.7 PSI |
Width | 8.5 in. |
Dimensions and Measurements
Cord Length | 15 ft. |
Depth | 8.7 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 42 gal / 10 ft, 50 gal / 5 ft, 27 gal / 15 ft |
Height | 10.9 in. |
Length | 8.8 in. |
Maximum Diameter Solids | 0.5 in. |
Maximum Head Height | 20 ft. |
Minimum Head Height | 5 ft. |
Product Weight | 32 lbs. |
Shut Off Height | 20 in. |
Shut Off Pressure | 8.7 |
Water Connection | 1-1/2" |
Water Pressure (Max) | 8.7 PSI |
Width | 8.5 in. |
Characteristics and Features
Automatic | Yes |
Configuration | Sump / Effluent Pump |
Impeller Material | Nylon |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Shutoff Head in Feet | 20 |
Submersible | Yes |
Switch Type | Mechanical Float |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Configuration | Sump / Effluent Pump |
Impeller Material | Nylon |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Shutoff Head in Feet | 20 |
Submersible | Yes |
Switch Type | Mechanical Float |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 10.1 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.33, 0.34 |
Maximum Fluid Temperature | 200 °F |
Voltage | 115 |
Wattage | 735 |
Electrical and Operational Information
Amperage | 10.1 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.33, 0.34 |
Maximum Fluid Temperature | 200 °F |
Voltage | 115 |
Wattage | 735 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
