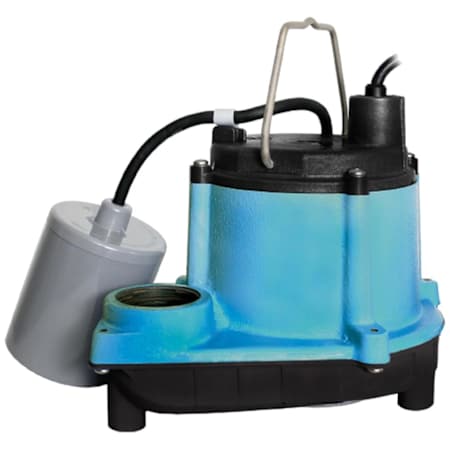

Little Giant 6-CIA-RFS - 1/3 HP Cast Iron Sump Pump with PB Tether Float (10' Cord)
Model: 506171|Item: bci2130521
from the6-Series Collection
$253.51
89 In Stock
Details
Features:
- Little Giant 506171 - 6-CIA-RFS - 1/3 HP Automatic Sump Pump (115V): Continuous duty rated for basement and crawlspace applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life
- Piggyback Tethered Float Switch: Versatile design allows for automatic or manual operation
- 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection: Oil-filled motor housing provides lower operating temperatures
- Vortex Style Nylon Impeller: Reduces clogging while providing consistent pumping
- PVC Leg Kit: Helps prevent debris from entering pump intake
- Stainless Steel Fasteners: Protects against corrosion in harsh sump pits
- Upper and Lower Sintered-Sleeve Bearing: Minimizes friction while providing smooth and quiet operation
- Carbon/Ceramic Mechanical Seal: Assures maximum protection against pump failure
- 10' Power Cord
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 120 in. |
Depth | 9.5 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate by Feet of Head | 12.5 gal / 15 ft, 29 gal / 10 ft, 46 gal / 5 ft |
Height | 9 in. |
Length | 9.5 in. |
Maximum Head Height | 18 in. |
Minimum Head Height | 5 in. |
Product Weight | 18 lbs. |
Shut Off Height | 18 in. |
Shut Off Pressure | 7.8 |
Water Connection | 1-1/2" |
Water Pressure (Max) | 7.8 PSI |
Width | 8.5 in. |
Dimensions and Measurements
Cord Length | 120 in. |
Depth | 9.5 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate by Feet of Head | 12.5 gal / 15 ft, 29 gal / 10 ft, 46 gal / 5 ft |
Height | 9 in. |
Length | 9.5 in. |
Maximum Head Height | 18 in. |
Minimum Head Height | 5 in. |
Product Weight | 18 lbs. |
Shut Off Height | 18 in. |
Shut Off Pressure | 7.8 |
Water Connection | 1-1/2" |
Water Pressure (Max) | 7.8 PSI |
Width | 8.5 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Plastic |
Configuration | Submersible Pump |
Float Type | Tether Switch |
Handles Solids | No |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Material | Cast Iron |
Material Casing | Iron, Polycarbonate |
Material Housing | Iron |
Mechanical Seal Material | Ceramic Carbon |
Shutoff Head in Feet | 18 |
Submersible | Yes |
Switch Type | Mechanical Float |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Base Material | Plastic |
Configuration | Submersible Pump |
Float Type | Tether Switch |
Handles Solids | No |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Material | Cast Iron |
Material Casing | Iron, Polycarbonate |
Material Housing | Iron |
Mechanical Seal Material | Ceramic Carbon |
Shutoff Head in Feet | 18 |
Submersible | Yes |
Switch Type | Mechanical Float |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9 |
Backup GPH @ 0 feet | 2760 GPH |
Backup GPH @ 10 feet | 1740 GPH |
Backup GPH @ 15 feet | 750 GPH |
Backup GPH @ 20 feet | 0 GPH |
Backup GPH @ 5 feet | 2760 GPH |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.33 |
Maximum Fluid Temperature | 140 °F |
Starting Amps | 14.3 Amps |
Voltage | 120 |
Wattage | 720 |
Electrical and Operational Information
Amperage | 9 |
Backup GPH @ 0 feet | 2760 GPH |
Backup GPH @ 10 feet | 1740 GPH |
Backup GPH @ 15 feet | 750 GPH |
Backup GPH @ 20 feet | 0 GPH |
Backup GPH @ 5 feet | 2760 GPH |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.33 |
Maximum Fluid Temperature | 140 °F |
Starting Amps | 14.3 Amps |
Voltage | 120 |
Wattage | 720 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
Commercial Warranty | 3 |
Manufacturer Warranty | 3 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
Commercial Warranty | 3 |
Manufacturer Warranty | 3 |
