Little Giant
Little Giant 6-CIA - 1/3-HP Automatic Submersible Sump Pump with Legs and Diaphragm Switch (25' Cord) N/A
Alternate Image
Little Giant 6-CIA - 1/3-HP Automatic Submersible Sump Pump with Legs and Diaphragm Switch (25' Cord) N/A
Alternate Image

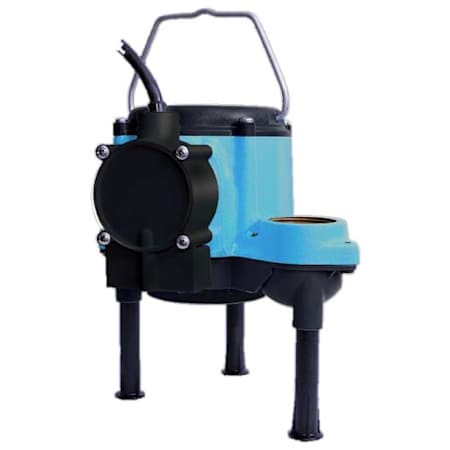

Little Giant 6-CIA - 1/3-HP Automatic Submersible Sump Pump with Legs and Diaphragm Switch (25' Cord)

Model: 506164
|
Item: bci5171591

$290.97
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Features:

  • Little Giant 506125 - 6-CIA - 1/3 HP Automatic Sump Pump (115V): Continuous duty rated for basement and crawlspace applications

  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life

  • Integral Diaphragm Pressure Switch: Provides reliable automatic operation

  • 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection: Oil-filled motor housing provides lower operating temperatures

  • Vortex Style Nylon Impeller: Reduces clogging while providing consistent pumping

  • PVC Leg Kit: Helps prevent debris from entering pump intake

  • Stainless Steel Fasteners: Protects against corrosion in harsh sump pits

  • Upper and Lower Sintered-Sleeve Bearing: Minimizes friction while providing smooth and quiet operation

  • Carbon/Ceramic Mechanical Seal: Assures maximum protection against pump failure

  • 25' Power Cord

  • 3-Year Limited Warranty

Additional Little Giant Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
8 in.
Discharge Diameter
1.5, 2 in.
Product Weight
18 lbs.
Width
6 in.

Dimensions and Measurements

Cord Length
8 in.
Discharge Diameter
1.5, 2 in.
Product Weight
18 lbs.
Width
6 in.

Characteristics and Features

Base Material
Plastic
Handles Solids
No
Housing Material
Cast Iron
Impeller Material
Nylon
Manual Override
No
Mechanical Seal Material
Ceramic Carbon
Submersible
Yes
Switch Type
Diaphragm

Characteristics and Features

Base Material
Plastic
Handles Solids
No
Housing Material
Cast Iron
Impeller Material
Nylon
Manual Override
No
Mechanical Seal Material
Ceramic Carbon
Submersible
Yes
Switch Type
Diaphragm

Electrical and Operational Information

Amperage
9
Backup GPH @ 0 feet
2760 GPH
Backup GPH @ 10 feet
1740 GPH
Backup GPH @ 15 feet
750 GPH
Backup GPH @ 20 feet
0 GPH
Backup GPH @ 5 feet
2760 GPH
Horsepower
0.33
Starting Amps
14.3 Amps
Voltage
120

Electrical and Operational Information

Amperage
9
Backup GPH @ 0 feet
2760 GPH
Backup GPH @ 10 feet
1740 GPH
Backup GPH @ 15 feet
750 GPH
Backup GPH @ 20 feet
0 GPH
Backup GPH @ 5 feet
2760 GPH
Horsepower
0.33
Starting Amps
14.3 Amps
Voltage
120

Warranty and Product Information

Commercial Warranty
3
Manufacturer Warranty
2

Warranty and Product Information

Commercial Warranty
3
Manufacturer Warranty
2
