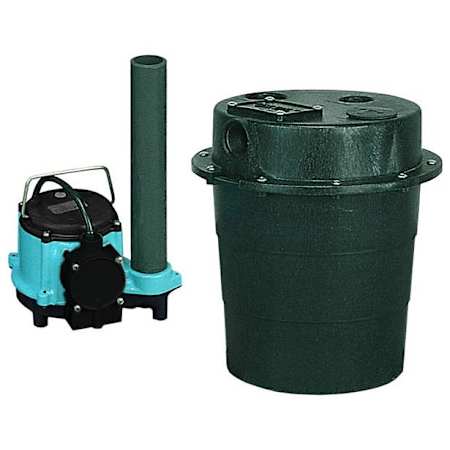

Little Giant WRS-6 - Drainosaur 1/3 HP Sink/Drain Pump System with Diaphragm Switch
Model: 506055|Item: bci2130527
from theWRS Collection
Details
Features:
- Drainosaur Water Removal System: Ideal for below grade sinks and wash machines
- Pre-Assembled Design: Makes installing this system an easy task
- Contractor-Grade Cast Iron Submersible Sump Pump: Protective epoxy coating provides excellent corrosion resistance
- 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection: Oil-filled motor housing provides lower operating temperatures
- Integral Diaphragm Pressure Switch: Provides reliable automatic operation
- 5 Gallon Cylindrical Polypropylene Tank: Great for applications with higher water volume
- Easy Removable Screened Intake: Provides added protection and easy cleaning
- Built-In O-Rings and Rubber Cord Grommet: Allows the basin to be water tight
- Additional Specs:
- 1-1/2" Intake and Discharge, 2" Vent, 8-Foot Power Cord
- IAPMO Approved Basin
- 2-Year Warranty
Dimensions and Measurements
Cord Length | 8 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 12 gal / 15 ft, 29 gal / 10 ft, 45 gal / 5 ft |
Height | 15.56 in. |
Inlet Diameter | 1.5 in. |
Length | 14.5 in. |
Maximum Head Height | 18 in. |
Minimum Head Height | 5 in. |
Outlet Diameter | 1.5 in. |
Product Weight | 27 lbs. |
Shut Off Height | 18 in. |
Water Connection | 1-1/2" |
Width | 14.5 in. |
Dimensions and Measurements
Cord Length | 8 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 12 gal / 15 ft, 29 gal / 10 ft, 45 gal / 5 ft |
Height | 15.56 in. |
Inlet Diameter | 1.5 in. |
Length | 14.5 in. |
Maximum Head Height | 18 in. |
Minimum Head Height | 5 in. |
Outlet Diameter | 1.5 in. |
Product Weight | 27 lbs. |
Shut Off Height | 18 in. |
Water Connection | 1-1/2" |
Width | 14.5 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Submersible Pump |
Handles Solids | No |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Submersible | Yes |
Switch Type | Diaphragm |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Configuration | Submersible Pump |
Handles Solids | No |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Submersible | Yes |
Switch Type | Diaphragm |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.33 |
Maximum Fluid Temperature | 140 °F |
Voltage | 120 |
Wattage | 720 |
Electrical and Operational Information
Amperage | 9 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.33 |
Maximum Fluid Temperature | 140 °F |
Voltage | 120 |
Wattage | 720 |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | Yes |
Certifications | UL, CSA |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | Yes |
Certifications | UL, CSA |
