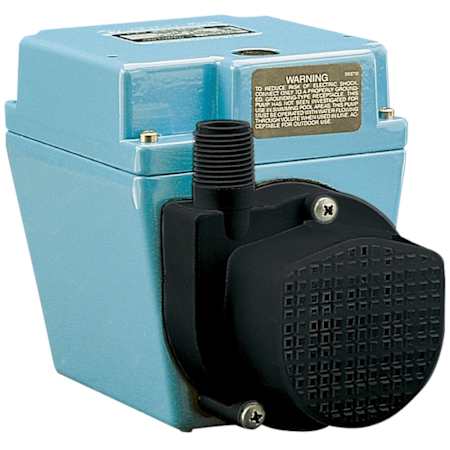

Little Giant 13.5 GPM 1/12 HP Submersible Water Pump
Model: 504203|Item: bci912730
$519.00
Finish: Steel -
86 In Stock
Details
Product Information:
- 4E-34NR Oil-Filled, Direct Drive Submersible Water Pump: For water transfer/recirculation/displays and machine tool Coolant
- 1/12 HP Oil-Filled Heavy Duty Motor
- Epoxy Coated Cast Aluminum Housing and Cover
- Nylon Volute
- Aluminum Backplate
- Viton Shaft Sweal
- UL Listed
- Additional Specs:
- Capacity: 810 GPH @ 1'
- Shut Off: 24.5'
- Liquid Temperature: Up to 120°F
- Discharge: 1/2" MNPT
- Intake: 3/4" FNPT
- Impeller: Nylon
- Cord: 6'
Dimensions and Measurements
Cord Length | 10 ft. |
Depth | 7 in. |
Discharge Diameter | 0.5 in. |
Flow Rate (GPM) | 13.5 |
Flow Rate by Feet of Head | 13.16 gal / 3 ft, 13.5 gal / 1 ft, 12.42 gal / 5 ft, 173 gal / 20 ft, 10.22 gal / 10 ft |
Height | 5.5 in. |
Inlet Diameter | 0.75 in. |
Length | 7 in. |
Outlet Diameter | 0.5 in. |
Product Weight | 8.5 lbs. |
Shut Off Height | 24.5 in. |
Shut Off Pressure | 10.6 |
Width | 4.5 in. |
Dimensions and Measurements
Cord Length | 10 ft. |
Depth | 7 in. |
Discharge Diameter | 0.5 in. |
Flow Rate (GPM) | 13.5 |
Flow Rate by Feet of Head | 13.16 gal / 3 ft, 13.5 gal / 1 ft, 12.42 gal / 5 ft, 173 gal / 20 ft, 10.22 gal / 10 ft |
Height | 5.5 in. |
Inlet Diameter | 0.75 in. |
Length | 7 in. |
Outlet Diameter | 0.5 in. |
Product Weight | 8.5 lbs. |
Shut Off Height | 24.5 in. |
Shut Off Pressure | 10.6 |
Width | 4.5 in. |
Characteristics and Features
Configuration | Submersible Pump |
Handles Solids | No |
Housing Material | Aluminum |
Impeller Material | Nylon |
Material | Nylon, Rubber, Aluminum |
Shutoff Head in Feet | 24.5 |
Submersible | Yes |
Characteristics and Features
Configuration | Submersible Pump |
Handles Solids | No |
Housing Material | Aluminum |
Impeller Material | Nylon |
Material | Nylon, Rubber, Aluminum |
Shutoff Head in Feet | 24.5 |
Submersible | Yes |
Electrical and Operational Information
Amperage | 3.5 |
Frequency | 60 Hertz |
Horsepower | 0.08 |
Voltage | 120 |
Wattage | 210 |
Electrical and Operational Information
Amperage | 3.5 |
Frequency | 60 Hertz |
Horsepower | 0.08 |
Voltage | 120 |
Wattage | 210 |
Warranty and Product Information
CARB approved | Yes |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
CARB approved | Yes |
Manufacturer Warranty | 1 Year |
