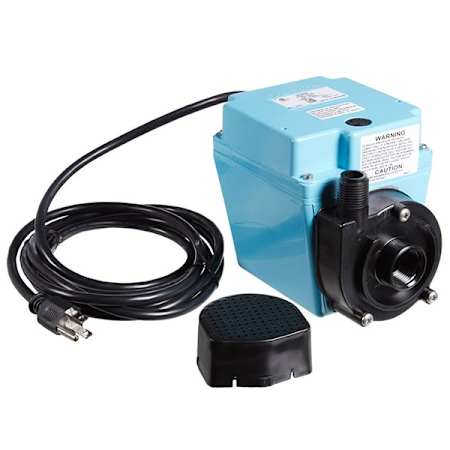

Little Giant 115-Volt, 1/15 HP, 670 GPH Dual Purpose In-Line or Small Submersible, Oil-Filled Pump, 10-Ft. Cord
Model: 503603|Item: bci911933
$359.25
Finish: Steel -
15 In Stock
Details
Product Information:
- Little Giant 3E-34N Oil-Filled Direct Drive Pump
- 1/15 HP Oil-Filled Motor
- Epoxy Coated Cast Aluminum Housing and Cover
- Nylon Volute
- Stainless Steel Backplate
- Viton Shaft Seal
- Polypropylene Screen
- UL Listed
- Additional Specs:
: For water transfer/recirculation/displays and machine tool Coolant
: For Submersible or In-Line Use
: Capacity: 670 GPH @ 1'
: Shut Off: 20.3'
: Liquid Temperature: Up to 120°F
: Discharge: 1/2" MNPT
: Intake: 3/4" FNPT
: Impeller: Nylon
: Cord: 10'
Dimensions and Measurements
Cord Length | 120 in. |
Depth | 7 in. |
Flow Rate (GPM) | 11.1 |
Flow Rate by Feet of Head | 575 gal / 5 ft, 460 gal / 10 ft, 10.83 gal / 1 ft, 650 gal / 3 ft |
Height | 5.5, 5.4 in. |
Inlet Diameter | 0.75 in. |
Length | 7 in. |
Outlet Diameter | 0.5 in. |
Product Weight | 8.25 lbs. |
Shut Off Height | 20.3 in. |
Shut Off Pressure | 8.8 |
Width | 4.4 in. |
Dimensions and Measurements
Cord Length | 120 in. |
Depth | 7 in. |
Flow Rate (GPM) | 11.1 |
Flow Rate by Feet of Head | 575 gal / 5 ft, 460 gal / 10 ft, 10.83 gal / 1 ft, 650 gal / 3 ft |
Height | 5.5, 5.4 in. |
Inlet Diameter | 0.75 in. |
Length | 7 in. |
Outlet Diameter | 0.5 in. |
Product Weight | 8.25 lbs. |
Shut Off Height | 20.3 in. |
Shut Off Pressure | 8.8 |
Width | 4.4 in. |
Characteristics and Features
Configuration | Dual Purpose Pump |
Handles Solids | No |
Housing Material | Aluminum |
Impeller Material | Nylon |
Shutoff Head in Feet | 20.3 |
Submersible | Yes |
Characteristics and Features
Configuration | Dual Purpose Pump |
Handles Solids | No |
Housing Material | Aluminum |
Impeller Material | Nylon |
Shutoff Head in Feet | 20.3 |
Submersible | Yes |
Electrical and Operational Information
Amperage | 3.2 |
Frequency | 60 Hertz |
Horsepower | 0.3, 0.066 |
Voltage | 120 |
Wattage | 208 |
Electrical and Operational Information
Amperage | 3.2 |
Frequency | 60 Hertz |
Horsepower | 0.3, 0.066 |
Voltage | 120 |
Wattage | 208 |
Warranty and Product Information
CARB approved | Yes |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
CARB approved | Yes |
Manufacturer Warranty | 1 Year |
