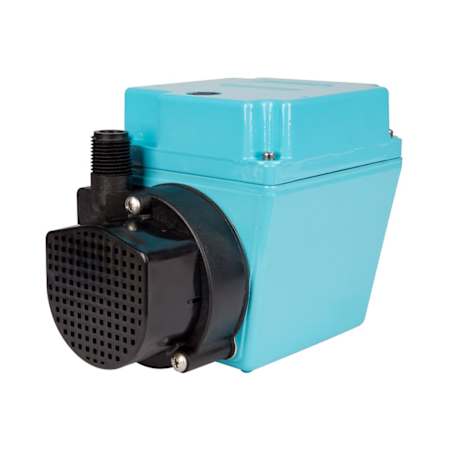

Little Giant 3E-12N - 500 GPH / 8.3GPM Dual Purpose Oil-Filled Submersible Utility Pump with 10ft. Cord
Model: 503186|Item: bci912723
$500.00
Finish: Steel -
5 In Stock
Cord Length
6-Ft. Cord
$317.79
10-Ft. Cord
$500.00
10-Ft. Cord
Free Shipping!
Leaves the Warehouse in 3 to 5 business days
-Details
Dual purpose oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial, and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 500 GPH pump features a 1/2" MNPT discharge and 17.3' shut-off head capability. It is not recommended to use the 3E series in aquariums, swimming pools and fuel oil transfer applications.
- 500 GPH @ 1 ft / 8.3 gallons per minute
- Operates submersed or in-line
- 10' cord
- Epoxy-coated aluminum housing.
- 1/2" FNPT inlet with snap-off screen for easy cleaning
- 1/2" MNPT outlet accepts 3/4" I.D. tubing.
- Thermally protected.
Specifications
Dimensions and Measurements
Cord Length | 10 ft. |
Cord Length (ft) | 10 ft. |
Depth | 7 in. |
Flow Rate (GPM) | 5 |
Flow Rate by Feet of Head | 8.33 gal / 1 ft, 1.08 gal / 15 ft, 7.25 gal / 3 ft, 5.61 gal / 5 ft, 3.5 gal / 10 ft |
Height | 5.5 in. |
Product Weight | 8.25 lbs. |
Shut Off Height | 17.3 in. |
Shut Off Pressure | 7.5 |
Width | 4.5 in. |
Dimensions and Measurements
Cord Length | 10 ft. |
Cord Length (ft) | 10 ft. |
Depth | 7 in. |
Flow Rate (GPM) | 5 |
Flow Rate by Feet of Head | 8.33 gal / 1 ft, 1.08 gal / 15 ft, 7.25 gal / 3 ft, 5.61 gal / 5 ft, 3.5 gal / 10 ft |
Height | 5.5 in. |
Product Weight | 8.25 lbs. |
Shut Off Height | 17.3 in. |
Shut Off Pressure | 7.5 |
Width | 4.5 in. |
Characteristics and Features
Configuration | Dual Purpose Pump |
Submersible | Yes |
Characteristics and Features
Configuration | Dual Purpose Pump |
Submersible | Yes |
Electrical and Operational Information
Amperage | 3.2 |
Frequency | 60 Hertz |
Horsepower | 0.066 |
Voltage | 115 |
Wattage | 200 |
Electrical and Operational Information
Amperage | 3.2 |
Frequency | 60 Hertz |
Horsepower | 0.066 |
Voltage | 115 |
Wattage | 200 |
Warranty and Product Information
Certifications | UL |
Warranty and Product Information
Certifications | UL |
