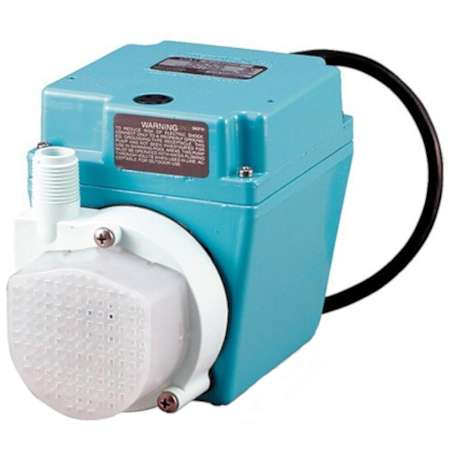

Little Giant 8.3 GPM 1/15 HP Dual-Purpose Submersible Fountain Pump
Model: 503103|Item: bci912509
$309.94
Finish: Steel -
337 In Stock
Details
Product Information:
- Little Giant 3E-12N Oil-Filled Direct Drive Pump
- For water transfer/recirculation/displays and machine tool Coolant
- For Submersible or In-Line Use
- 1/15 HP Oil-Filled Motor
- Epoxy Coated Cast Aluminum Housing and Cover
- Nylon Volute
- Aluminum Backplate
- Viton Shaft Seal
- Polypropylene Screen
- UL Listed
- Additional Specs:
- Capacity: 500 GPH @ 1'
- Shut Off: 17'
- Liquid Temperature: Up to 120°F
- Discharge: 1/2" MNPT
- Intake: 1/2" FNPT
- Impeller: Nylon
- Cord: 6'
Dimensions and Measurements
Cord Length | 6 in. |
Depth | 7 in. |
Flow Rate (GPM) | 8.3 |
Flow Rate by Feet of Head | 500 gal / 1 ft, 210 gal / 10 ft, 337 gal / 5 ft, 65 gal / 15 ft, 435 gal / 3 ft |
Height | 5.4, 5.5 in. |
Length | 7 in. |
Outlet Diameter | 0.5 in. |
Product Weight | 8 lbs. |
Shut Off Height | 17.3 in. |
Shut Off Pressure | 7.5 |
Width | 4.4 in. |
Dimensions and Measurements
Cord Length | 6 in. |
Depth | 7 in. |
Flow Rate (GPM) | 8.3 |
Flow Rate by Feet of Head | 500 gal / 1 ft, 210 gal / 10 ft, 337 gal / 5 ft, 65 gal / 15 ft, 435 gal / 3 ft |
Height | 5.4, 5.5 in. |
Length | 7 in. |
Outlet Diameter | 0.5 in. |
Product Weight | 8 lbs. |
Shut Off Height | 17.3 in. |
Shut Off Pressure | 7.5 |
Width | 4.4 in. |
Characteristics and Features
Configuration | Dual Purpose Pump |
Handles Solids | No |
Housing Material | Aluminum |
Impeller Material | Nylon |
Shutoff Head in Feet | 17.3 |
Submersible | Yes |
Characteristics and Features
Configuration | Dual Purpose Pump |
Handles Solids | No |
Housing Material | Aluminum |
Impeller Material | Nylon |
Shutoff Head in Feet | 17.3 |
Submersible | Yes |
Electrical and Operational Information
Amperage | 3.2 |
Feed Type | Continuous |
Frequency | 60 Hertz |
Horsepower | 0.06 |
Voltage | 120 |
Wattage | 200 |
Electrical and Operational Information
Amperage | 3.2 |
Feed Type | Continuous |
Frequency | 60 Hertz |
Horsepower | 0.06 |
Voltage | 120 |
Wattage | 200 |
Warranty and Product Information
CARB approved | Yes |
Certifications | UL |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
CARB approved | Yes |
Certifications | UL |
Manufacturer Warranty | 1 Year |
