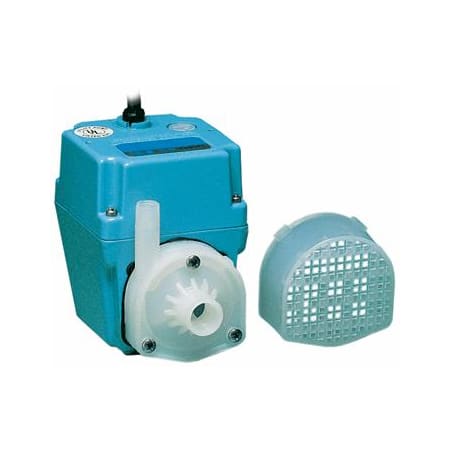

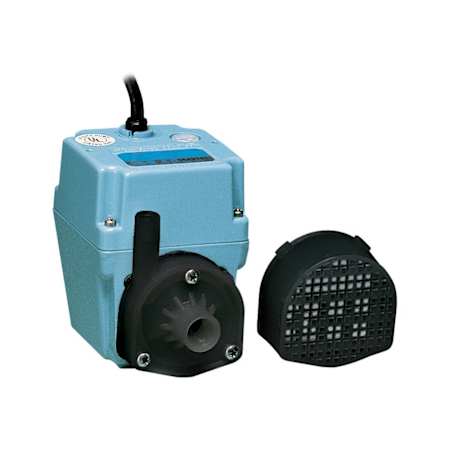

Little Giant 2E-38N 300 GPH / 5GPM 115V Oil Filled Dual Purpose Water Feature Pond Utility Pump
Model: 502375|Item: bci912255
$162.50
Finish: Steel -
2 In Stock
Details
Little Giant's 2E-38N Series is a dual-purpose, small oil-filled submersible pump used in commercial, industrial, or residential applications where liquid must be transferred or recirculated. These applications for this small oil-filled submersible pump include statuary fountains, water displays, air conditioners, and machine tool coolants.
- 300 GPH @ 1 ft. / 5 galloner per minute
- Operates submersed or in-line
- 15' cord
- Epoxy-coated aluminum housing
- 3/8" FNPT inlet with snap off screen for easy cleaning
- 1/4" MNPT outlet accepts 1/2" I.D. tubing.
- Thermally protected.
Specifications
Dimensions and Measurements
Cord Length | 15 ft. |
Cord Length (ft) | 15 ft. |
Depth | 5.5 in. |
Discharge Diameter | 0.25 in. |
Flow Rate (GPM) | 5 |

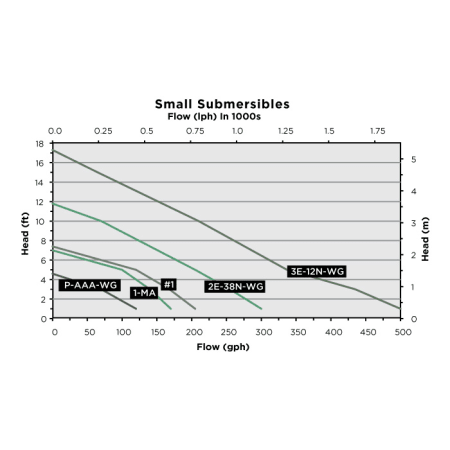

Flow Rate by Feet of Head | 3.42 gal / 5 ft, 1.16 gal / 10 ft, 4.25 gal / 3 ft, 5 gal / 1 ft |
Height | 5.55 in. |
Length | 4.64 in. |
Maximum Head Height | 5 ft. |
Minimum Head Height | 1 ft. |
Product Weight | 5.42 lbs. |
Shut Off Height | 11.8 in. |
Water Connection | 1/4" |
Width | 3.5 in. |
Dimensions and Measurements
Cord Length | 15 ft. |
Cord Length (ft) | 15 ft. |
Depth | 5.5 in. |
Discharge Diameter | 0.25 in. |
Flow Rate (GPM) | 5 |
Flow Rate by Feet of Head | 3.42 gal / 5 ft, 1.16 gal / 10 ft, 4.25 gal / 3 ft, 5 gal / 1 ft |
Height | 5.55 in. |
Length | 4.64 in. |
Maximum Head Height | 5 ft. |
Minimum Head Height | 1 ft. |
Product Weight | 5.42 lbs. |
Shut Off Height | 11.8 in. |
Water Connection | 1/4" |
Width | 3.5 in. |
Characteristics and Features
Configuration | Pond Pump |
Submersible | Yes |
Water Connection Type | NPT |
Characteristics and Features
Configuration | Pond Pump |
Submersible | Yes |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 1.7 |
Frequency | 60 Hertz |
Horsepower | 0.025 |
Voltage | 115 |
Wattage | 100 |
Electrical and Operational Information
Amperage | 1.7 |
Frequency | 60 Hertz |
Horsepower | 0.025 |
Voltage | 115 |
Wattage | 100 |
Warranty and Product Information
Certifications | UL, CSA |
Warranty and Product Information
Certifications | UL, CSA |
