Little Giant

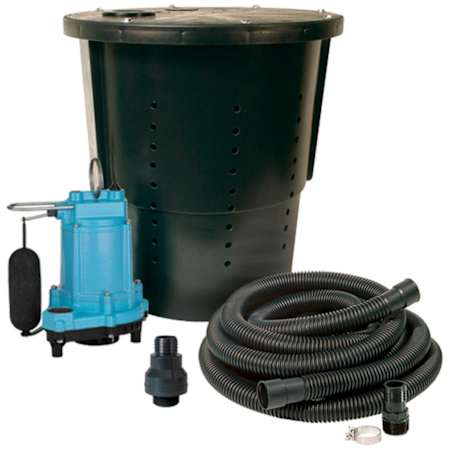

Little Giant CS-SS - 1/3 HP Pre-Assembled Crawl Space Automatic Sump / Effluent Pump System with 20' Cord N/A
Little Giant CS-SS - 1/3 HP Pre-Assembled Crawl Space Automatic Sump / Effluent Pump System with 20' Cord N/A
Alternate Image

Little Giant CS-SS - 1/3 HP Pre-Assembled Crawl Space Automatic Sump / Effluent Pump System with 20' Cord

Model: 14940655
|
Item: bci912746

$366.50
34 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Tomorrow, March 2nd
-
Return & Shipping Details

Details

Features:

  • Little Giant CS-SS Pre-Assembled Crawl Space Sump Pump System
    • Helps prevent water and moisture from collecting in the low areas
    • For crawl space, yard, patio or driveway applications

  • Automatic Submersible Sump Pump: Continuous duty rated for sump and light effluent applications

  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life

  • 1/3 HP PSC Motor w/ Thermal Overload Protection
    • Energy saving design w/ low amp draw
    • Cooler running motor which extends the life of the pump

  • Vertical Float Switch: Double-seal design minimizes switch corrosion

  • Vortex Style Nylon Impeller: Non-clogging design passes up to 1/2" spherical solids

  • No Sheet Metal Parts To Rust Or Corrode: Stainless steel intake plate, screws, bolts and handle

  • Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection for extended pump life

  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings: Minimizes friction while providing smooth and quiet operation

  • Also Includes
    • 18" x 22" Lightweight perforated polypropylene basin
    • Structural foam cover with slip fit flanges
    • 1-1/4" x 24' Discharge hose kit
    • 1-1/2" MNPT Barbed check valve

  • 3-Year Warranty

Additional Little Giant Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
240 in.
Discharge Diameter
1.5, 2 in.
Flow Rate by Feet of Head
50 gal / 5 ft, 10 gal / 10 ft, 27 gal / 15 ft
Height
12.75 in.
Maximum Diameter Solids
.5 in.
Maximum Head Height
20 in.
Minimum Head Height
5 in.
Product Weight
48 lbs.
Shut Off Height
20 in.
Water Connection
1-1/2"
Width
10.93 in.

Dimensions and Measurements

Cord Length
240 in.
Discharge Diameter
1.5, 2 in.
Flow Rate by Feet of Head
50 gal / 5 ft, 10 gal / 10 ft, 27 gal / 15 ft
Height
12.75 in.
Maximum Diameter Solids
.5 in.
Maximum Head Height
20 in.
Minimum Head Height
5 in.
Product Weight
48 lbs.
Shut Off Height
20 in.
Water Connection
1-1/2"
Width
10.93 in.

Characteristics and Features

Automatic
Yes
Base Material
Plastic
Configuration
Sump Pump
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Nylon
Manual Override
No
Material
Cast Iron
Material Casing
Iron
Material Housing
Iron
Mechanical Seal Material
Ceramic Carbon
Shutoff Head in Feet
20
Submersible
Yes
Switch Type
Snap Action
Water Connection Type
NPT

Characteristics and Features

Automatic
Yes
Base Material
Plastic
Configuration
Sump Pump
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Nylon
Manual Override
No
Material
Cast Iron
Material Casing
Iron
Material Housing
Iron
Mechanical Seal Material
Ceramic Carbon
Shutoff Head in Feet
20
Submersible
Yes
Switch Type
Snap Action
Water Connection Type
NPT

Electrical and Operational Information

Amperage
10.7
Backup GPH @ 0 feet
5580 GPH
Backup GPH @ 10 feet
4500 GPH
Backup GPH @ 15 feet
3480 GPH
Backup GPH @ 20 feet
2160 GPH
Backup GPH @ 5 feet
5400 GPH
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.33
Maximum Fluid Temperature
140 °F
Starting Amps
12 Amps
Voltage
120
Wattage
750

Electrical and Operational Information

Amperage
10.7
Backup GPH @ 0 feet
5580 GPH
Backup GPH @ 10 feet
4500 GPH
Backup GPH @ 15 feet
3480 GPH
Backup GPH @ 20 feet
2160 GPH
Backup GPH @ 5 feet
5400 GPH
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.33
Maximum Fluid Temperature
140 °F
Starting Amps
12 Amps
Voltage
120
Wattage
750

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
UL, CSA
Commercial Warranty
3
Manufacturer Warranty
3

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
UL, CSA
Commercial Warranty
3
Manufacturer Warranty
3
