The Lithonia Lighting TCLC M4 has been discontinued
** See similar or replacement items below **
Item # bci4146559

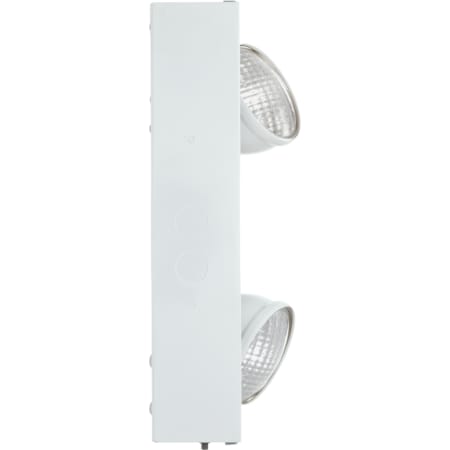

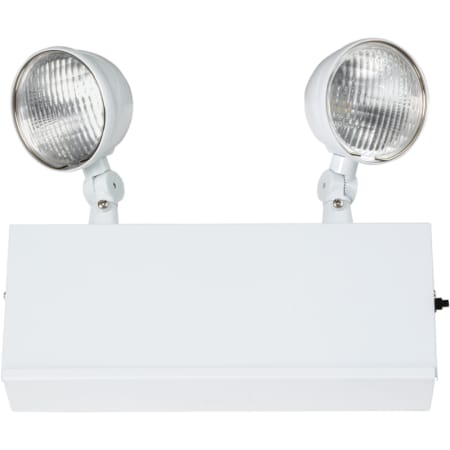

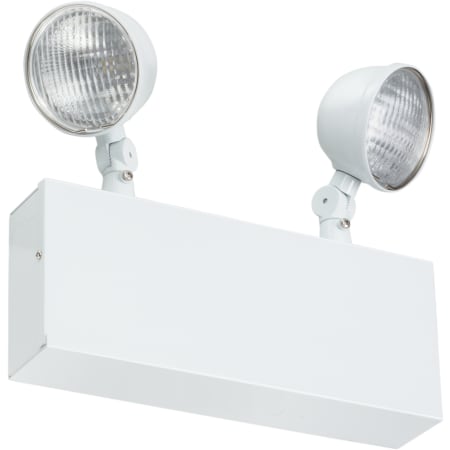

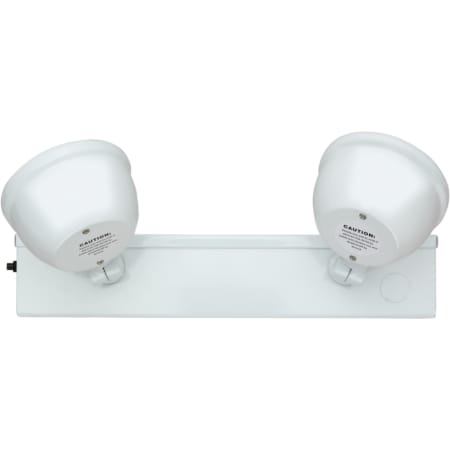

Lithonia Lighting 12" Wide LED Emergency Light
Model: TCLC M4|Item: bci4146559
from theTCLC Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Dual LED lamp head steel emergency light ideal for light industrial applications where steel housing emergency lighting is required. This product also meets requirements for the city of Chicago.
Features:
- Made of 20-gauge steel housing
- Current-limiting charger maximizes battery life and minimizes energy consumption and provides low operating costs
- Emergency lighting is not recommended to be dimmed
- UL listed damp location 68°F to 122°F (20°C to 50°C), meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards, city of Chicago approved
- Dual-voltage input capacity, 120 or 277 volts, back mount only, side and top conduit knockouts available
- Low-voltage disconnect prevents excessively deep discharge that can permanently damage the battery also includes test switch and dual-function ready/charge light (red) permit check of system operation
- Maintenance-free sealed lead-acid battery provides capacity for 120 minutes
- Constructed of steel
- For use in commercial settings
- Integrated 10.6 watt LED lighting
- Rated for damp locations
- Covered under a 5 Year Limited manufacturer warranty
Dimensions:
- Height: 11-3/8"
- Width: 12-3/8"
- Depth: 2-1/2"
- Product Weight: 6.7 lbs
Electrical Specifications:
- Wattage: 10.6 watts
- Number of Light Source(s): 2
Dimensions and Measurements
Depth | 2.5 in. |
Height | 11.38 in. |
Nominal Width | 12 in. |
Product Weight | 6.7 lbs. |
Width | 12.38 in. |
Dimensions and Measurements
Depth | 2.5 in. |
Height | 11.38 in. |
Nominal Width | 12 in. |
Product Weight | 6.7 lbs. |
Width | 12.38 in. |
Included Components
Bulb Included | Yes |
Included Components
Bulb Included | Yes |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
LED | Yes |
Light Direction | Ambient Lighting |
Material | Steel |
Number of Bulbs | 2 |
Number of Light Source(s) | 2 |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
LED | Yes |
Light Direction | Ambient Lighting |
Material | Steel |
Number of Bulbs | 2 |
Number of Light Source(s) | 2 |
Electrical and Operational Information
Voltage | 120, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 10.6 |
Watts Per Bulb | 5.3 |
Electrical and Operational Information
Voltage | 120, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 10.6 |
Watts Per Bulb | 5.3 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Collection | TCLC |
Country Of Origin | China |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year Limited |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Collection | TCLC |
Country Of Origin | China |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year Limited |
