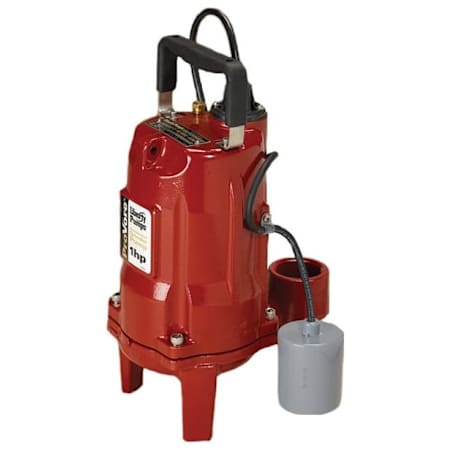

Liberty Pumps 1 HP ProVore Residential Grinder Pump (2") with Piggyback Tether Float (230V)
Model: PRG102A|Item: bci5171469
Details
Features:
- Automatic Submersible Cast Iron ProVore Grinder Pump (230V): 2-Inch Discharge designed for residential sewage applications
- Epoxy Powder Coated Cast Iron Construction: Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch: Provides reliable automatic operation in residential sump pits
- Rugged and Thermally Protected 1 HP Motor: Hermetically sealed, permanently lubricated design
- V-Slice Cutter Technology (440 Stainless Steel): Provides improved shredding performance over radial cutters
- Stainless Steel Rotor Shaft w/ Unitized Silicon Carbon Seal: With permanently lubricated bearings for extended pump life
- Multi-Vane Cast Iron Impeller: Keeps debris away seal area to minimize risk of internal damage
- Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest systems
- Quick-Disconnect 10' Power Cord: Allows for easy replacement of cord without breaking motor seals
- PLEASE NOTE - Requires 230V Power (Min. 20A Breaker)
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 2760 gal / 0 ft, 2160 gal / 20 ft, 2580 gal / 10 ft, 2700 gal / 5 ft, 2400 gal / 15 ft |
Height | 17.625 in. |
Length | 11 in. |
Max Float On | 16 in. |
Min Float Off | 6 in. |
Min Float On | 12 in. |
Width | 7.125 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 2760 gal / 0 ft, 2160 gal / 20 ft, 2580 gal / 10 ft, 2700 gal / 5 ft, 2400 gal / 15 ft |
Height | 17.625 in. |
Length | 11 in. |
Max Float On | 16 in. |
Min Float Off | 6 in. |
Min Float On | 12 in. |
Width | 7.125 in. |
Included Components
Built-In Check Valve | No |
Included Components
Built-In Check Valve | No |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Manual Override | Yes |
Solid Handling | 2 Inch |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Manual Override | Yes |
Solid Handling | 2 Inch |
Electrical and Operational Information
Amperage | 6 |
Horsepower | 1 |
Voltage | 240 |
Electrical and Operational Information
Amperage | 6 |
Horsepower | 1 |
Voltage | 240 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
