Liberty Pumps
Liberty Pumps 1/3 Primary (257) StormCell Standard Battery Backup Sump Pump System N/A
Alternate Image
Liberty Pumps 1/3 Primary (257) StormCell Standard Battery Backup Sump Pump System N/A
Alternate Image

Liberty Pumps 1/3 Primary (257) StormCell Standard Battery Backup Sump Pump System

Model: PC257-442-10A
|
Item: bci5171384

$1,227.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Features:

  • Liberty Pumps 1/3 HP Primary (257) and StormCell Standard Backup Sump Pump System: Pre-assembled from the factory for quick and easy installation

  • Fully Automatic Operation - Provides Uninterrupted Pumping: Keeps the water moving during an outage or primary pump failure

  • 1/3 HP Cast Iron Primary Pump w/ Vertical Float Switch (257)
    • Rugged, energy efficient and thermally protected 1/3 HP motor
    • UNI-BODY casting w/ epoxy coated power coat finish
    • Magnetically operated vertical float switch

  • Energy-Efficient, High-Flow 12V DC Submersible Pump (442-10A)
    • Corrosion-resistant, thermoplastic construction
    • Pumps up to 2100 GPH @ 0' / 1800 GPH @ 10' on battery power

  • Professional-Grade, StormCell Standard 10A Charger/Controller: Microprocessor controlled, Sophisticated algorithm continually tests charging process

  • Remote, Wall-Mount User Interface w/ LCD Display
    • Runs up to 12-hours on 9V battery w/ alarm active and up to 7-days in standby mode
    • Auxiliary Contacts make it easy to connect to a home alarm/security system

  • Super-Bright LED Alarm Ring and High Water Level Audio Alarm
    • Red LED makes it easy to see when there's a problem
    • Easily hear when a high water condition is occurring; Self-reset after alarm is silenced

  • Compact, Snap-On Float Switch w/ 10-Foot Cord
    • Fits on 1-1/2" discharge pipes; Allows for use in basins 18" and larger
    • High water float acts as a redundant "On" float for the backup pump

  • Also Includes:: Battery Case, Check Valves and Plumbing / Mounting Components

  • Requires (1) Type 27 or 31 Marine Battery (Sold Separately)

  • 3-Year Limited Warranty

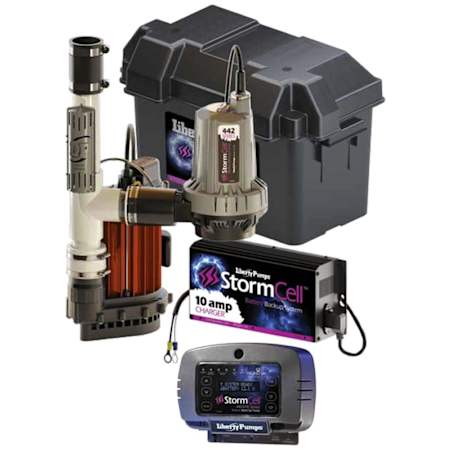

  • ***Note - Main Image Is System Example - 2nd Image Is Primary Pump Included***

  • For indoor use only

Additional Liberty Pumps Links

Manufacturer Resources

Install SheetSpecification Sheet

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5 in.
Product Weight
35 lbs.

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5 in.
Product Weight
35 lbs.

Included Components

Battery Included
No

Included Components

Battery Included
No

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic

Electrical and Operational Information

Amperage
5.2
Backup GPH @ 0 feet
3000 GPH
Backup GPH @ 10 feet
2250 GPH
Backup GPH @ 15 feet
1560 GPH
Backup GPH @ 20 feet
720 GPH
Backup GPH @ 5 feet
2700 GPH
Horsepower
0.33
Starting Amps
8 Amps
Voltage
12

Electrical and Operational Information

Amperage
5.2
Backup GPH @ 0 feet
3000 GPH
Backup GPH @ 10 feet
2250 GPH
Backup GPH @ 15 feet
1560 GPH
Backup GPH @ 20 feet
720 GPH
Backup GPH @ 5 feet
2700 GPH
Horsepower
0.33
Starting Amps
8 Amps
Voltage
12

Warranty and Product Information

Manufacturer Warranty
3

Warranty and Product Information

Manufacturer Warranty
3
