Liberty Pumps 1 HP ProVore 680 Duplex Grinder Pump System (24" x 24" 16-Bolt Cvr)
Model: P682XPRG101|Item: bci3813216
from theN/A Collection
Details
Features:

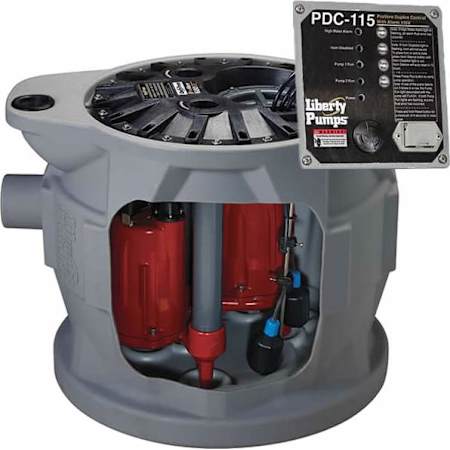

- ProVore 680 Series Residential Duplex Grinder System: Compact design, fully assembled from the factory for easy install
- 24" x 24" (46-Gallon) Polyethylene Basin w/ Molded 4" Inlet
- 16-Bolt Cover - ***IAPMO Listed - Will Pass 10' Stack Test***
- Integrally molded anti-flotation collar and torque stops (pump)
- PDC-115 Duplex Pump Controller (NEMA 1)
- Alternates operation - equalizing wear and extends pump life
- Plug-in ready, QT mounted switch/alarm floats and Power/Run indicators
- (2) 1 HP ProVore Residential Grinder Pump 115V (PRG101): A workhorse for residential and light commercial sewage apps.
- Epoxy Powder Coated Cast Iron Construction and SS Fasteners: Designed to provide years of reliable performance
- V-Slice Cutter Technology (440 SSl) and 2-Vane Cast Iron Impeller
- Provides improved shredding performance over radial cutters
- Keeps debris away from seal area to minimize risk of internal damage
- QuickTree Technology and Separate Access Cover w/ Rubber Seals: Allows easy removal of floats without pulling the pump and integrated seals
- Audible/Visual Alarms w/ 9V Alarm Backup: Automatic 6 hour run limiter prevent run-dry conditions
- 3-Year Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 44 gal / 10 ft, 40 gal / 15 ft, 45 gal / 5 ft |
Maximum Diameter Solids | 2 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 44 gal / 10 ft, 40 gal / 15 ft, 45 gal / 5 ft |
Maximum Diameter Solids | 2 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Shutoff Head in Feet | 37 |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Shutoff Head in Feet | 37 |
Electrical and Operational Information
Amperage | 12 |
Horsepower | 1 |
Voltage | 120 |
Wattage | 1380.00 |
Electrical and Operational Information
Amperage | 12 |
Horsepower | 1 |
Voltage | 120 |
Wattage | 1380.00 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
