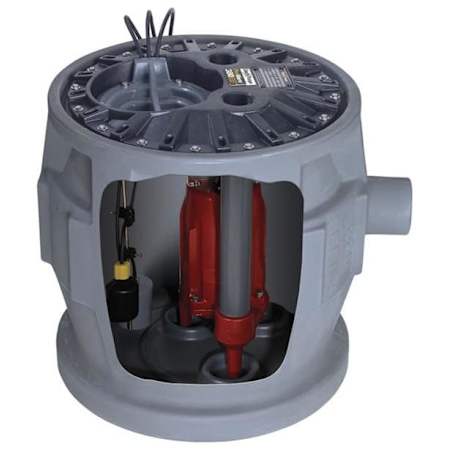

Liberty Pumps 1 HP ProVore 380 Grinder Pump System (24" x 24" 16-Bolt Cover)
Model: p382xprg101|Item: bci2367291
from theProVore Collection
$1,735.06
39 In Stock
Details
Features:
- Liberty ProVore 380 Series w/ QuickTree Technology: Factory pre-assembled for easy installation
- 24" x 24" (41-Gallon) Polyethylene Basin w/ Molded 4" Inlet
- 16-Bolt Cover - ***IAPMO Listed - Will Pass 10' Stack Test***
- Integrally molded anti-flotation collar and torque stops (pump)
- 1 HP ProVore Residential Grinder Pump 115V (PRG101): A workhorse for residential and light commercial sewage apps.
- Epoxy Powder Coated Cast Iron Construction and SS Fasteners: designed to provide years of reliable performance
- V-Slice Cutter Technology (440 SSl) and 2-Vane Cast Iron Impeller
- Provides improved shredding performance over radial cutters
- Keeps debris away from seal area to minimize risk of internal damage
- QuickTree Technology and Separate Access Cover w/ Rubber Seals: Allows easy removal of floats without pulling the pump and integrated seals
- Piggyback Tether Float Switch: Provides reliable automatic operation and allows for longer cycles
- Quick-Disconnect 10' Power Cord: Allows for easy replacement of cord without breaking motor seals
- 3-Year Warranty
Specifications
Dimensions and Measurements
Cord Length | 10 ft. |
Cord Length (ft) | 10 ft. |
Depth | 26.25 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 46 |
Flow Rate by Feet of Head | 16 gal / 40 ft, 46 gal / 1 ft, 44 gal / 10 ft |
Height | 24 in. |
Inlet Diameter | 4 in. |
Maximum Diameter Solids | 2 in. |
Width | 26.25 in. |
Dimensions and Measurements
Cord Length | 10 ft. |
Cord Length (ft) | 10 ft. |
Depth | 26.25 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 46 |
Flow Rate by Feet of Head | 16 gal / 40 ft, 46 gal / 1 ft, 44 gal / 10 ft |
Height | 24 in. |
Inlet Diameter | 4 in. |
Maximum Diameter Solids | 2 in. |
Width | 26.25 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Material Casing | Polyethylene |
Material Shaft | Stainless Steel |
Shutoff Head in Feet | 50 |
Submersible | No |
Switch Type | Float |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Material Casing | Polyethylene |
Material Shaft | Stainless Steel |
Shutoff Head in Feet | 50 |
Submersible | No |
Switch Type | Float |
Electrical and Operational Information
Amperage | 12 |
Electrical Phases | 1 |
Horsepower | 1 |
Maximum Fluid Temperature | 140 °F |
Voltage | 120 |
Electrical and Operational Information
Amperage | 12 |
Electrical Phases | 1 |
Horsepower | 1 |
Maximum Fluid Temperature | 140 °F |
Voltage | 120 |
Warranty and Product Information
Certifications | CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Certifications | CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
