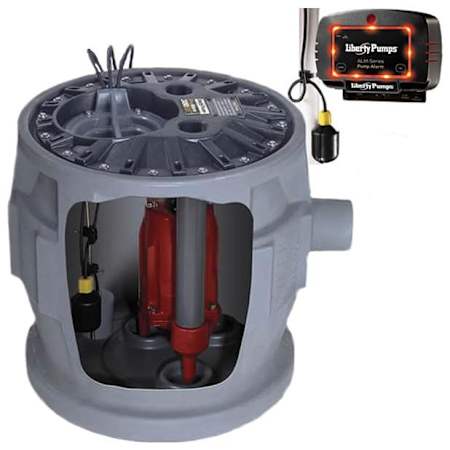

Liberty Pumps 4/10 HP Pro380 Cast Iron Sewage Pump System (24"x24") with Alarm
Model: P382LE41/A2|Item: bci3813163
from theN/A Collection
Details
Features:
- Pro380 Series P382LE41/A2 Alarmed System
- ALM-2 Alarm - Factory mounted in basin for proper level control
- Factory pre-assembled for easy installation
- 4/10 HP Cast Iron Sewage Pump (LE41A): A workhorse for residential and light commercial sewage apps.
- QuickTree Technology and Separate Access Cover w/ Rubber Seals
- Allows easy removal of floats without pulling the pump
- Unique integrated cord seal technology in cover
- Piggyback Tether Float Switch: Provides reliable automatic operation and allows for longer cycles
- Epoxy Powder Coated Cast Iron Construction and SS/Brass Fasteners: Designed to provide years of reliable performance
- Engineered Multi-Vane Vortex Style Polymer Impeller: Corrosion-resistant design, passes spherical solids up to 2"
- Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal: With permanently lubricated bearings for extended pump life
- 24" x 24" (41-Gallon) Polyethylene Basin w/ Molded 4" Inlet: Integrally molded anti-flotation collar and torque stops (pump)
- 3-Year Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 125 gal / 5 ft, 100 gal / 10 ft, 50 gal / 15 ft |
Maximum Diameter Solids | 2 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 125 gal / 5 ft, 100 gal / 10 ft, 50 gal / 15 ft |
Maximum Diameter Solids | 2 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Shutoff Head in Feet | 25 |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Shutoff Head in Feet | 25 |
Electrical and Operational Information
Amperage | 12 |
Horsepower | 0.4 |
Starting Amps | 22.5 Amps |
Voltage | 120 |
Wattage | 1380.00 |
Electrical and Operational Information
Amperage | 12 |
Horsepower | 0.4 |
Starting Amps | 22.5 Amps |
Voltage | 120 |
Wattage | 1380.00 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
