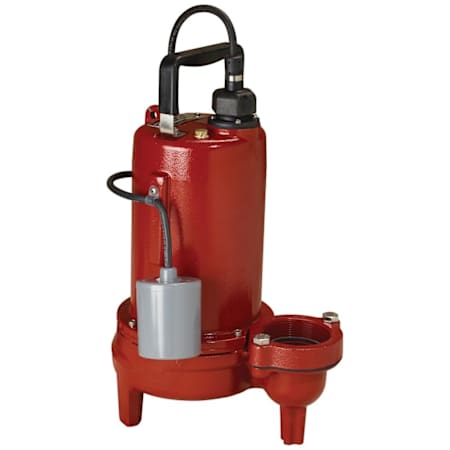

Liberty Pumps 3/4 HP Cast Iron Sewage Pump (3") with Piggyback Tether Float
Model: LE71A3|Item: bci5171568
Details
Features:
- Automatic Submersible Cast Iron Sewage Pump: A workhorse for residential and light commercial sewage apps.
- Heavy-Duty Epoxy Powder Coated Cast Iron Construction: Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch: Provides automatic or manual operation via piggyback plug
- Rugged and Thermally Protected 3/4 HP Motor: Hermetically sealed, permanently lubricated design
- 2-Vane Semi-Open Cast Iron Impeller: Heavy-duty design, passes spherical solids up to 2"
- High Capacity 3" Discharge: Easily connect to your existing 3-inch discharge line
- Quick-Disconnect 10' Power Cord: Allows for easy replacement of cord without breaking motor seals
- Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal: With permanently lubricated bearings for extended pump life
- Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest systems
- 3-Year Limited Warranty
Specifications
Dimensions and Measurements
Cord Length | 10 ft. |
Cord Length (ft) | 10 ft. |
Discharge Diameter | 3 in. |
Flow Rate (GPM) | 160 |
Flow Rate by Feet of Head | 6300 gal / 15 ft, 7560 gal / 10 ft, 9480 gal / 0 ft, 4500 gal / 20 ft, 8640 gal / 5 ft |
Height | 16.4 in. |
Length | 12.6 in. |
Maximum Diameter Solids | 2 in. |
Width | 9 in. |
Dimensions and Measurements
Cord Length | 10 ft. |
Cord Length (ft) | 10 ft. |
Discharge Diameter | 3 in. |
Flow Rate (GPM) | 160 |
Flow Rate by Feet of Head | 6300 gal / 15 ft, 7560 gal / 10 ft, 9480 gal / 0 ft, 4500 gal / 20 ft, 8640 gal / 5 ft |
Height | 16.4 in. |
Length | 12.6 in. |
Maximum Diameter Solids | 2 in. |
Width | 9 in. |
Included Components
Built-In Check Valve | No |
Included Components
Built-In Check Valve | No |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Pump Material | Cast Iron |
Shutoff Head in Feet | 28 |
Solid Handling | 2 Inch |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Pump Material | Cast Iron |
Shutoff Head in Feet | 28 |
Solid Handling | 2 Inch |
Electrical and Operational Information
Amperage | 12 |
Horsepower | 0.75 |
Starting Amps | 28 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 12 |
Horsepower | 0.75 |
Starting Amps | 28 Amps |
Voltage | 120 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
