Liberty Pumps

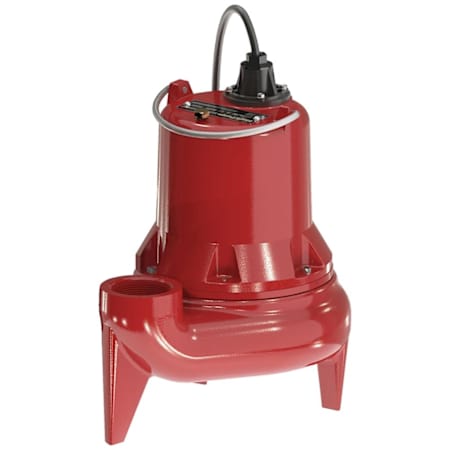

Liberty Pumps 1/2 HP Cast Iron Sewage Pump (2") Non-Automatic N/A
Liberty Pumps 1/2 HP Cast Iron Sewage Pump (2") Non-Automatic N/A
Alternate Image

Liberty Pumps 1/2 HP Cast Iron Sewage Pump (2") Non-Automatic

Model: LE51M
|
Item: bci5171612

$454.50
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details



Features:

  • ***NON-AUTOMATIC - Requires Float Switch or Controller***

  • Submersible Cast Iron Sewage Pump: A workhorse for residential and light commercial sewage apps.

  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction: Designed to provide years of reliable performance

  • Rugged and Thermally Protected 1/2 HP Motor: Hermetically sealed, permanently lubricated design

  • Engineered 2-Vane Semi-Open HYTREL Polymer Impeller: Corrosion-resistant design, passes spherical solids up to 2"

  • High Capacity 2" Discharge: Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Power Cord: Allows for easy replacement of cord without breaking motor seals

  • Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal: With permanently lubricated bearings for extended pump life

  • Non-Corrosive Stainless Steel and Brass Fasteners: Increases the lifespan of the pump even in the harshest systems

  • 3-Year Limited Warranty


  •



Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
2 in.
Flow Rate by Feet of Head
9600 gal / 0 ft, 8400 gal / 5 ft, 6720 gal / 10 ft, 5400 gal / 15 ft, 3300 gal / 20 ft
Height
13.25 in.
Length
10.7 in.
Maximum Diameter Solids
2 in.
Width
8.4 in.

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
2 in.
Flow Rate by Feet of Head
9600 gal / 0 ft, 8400 gal / 5 ft, 6720 gal / 10 ft, 5400 gal / 15 ft, 3300 gal / 20 ft
Height
13.25 in.
Length
10.7 in.
Maximum Diameter Solids
2 in.
Width
8.4 in.

Included Components

Built-In Check Valve
No

Included Components

Built-In Check Valve
No

Characteristics and Features

Automatic
No
Base Material
Iron
Float Type
No Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Shutoff Head in Feet
19
Solid Handling
2 Inch

Characteristics and Features

Automatic
No
Base Material
Iron
Float Type
No Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Shutoff Head in Feet
19
Solid Handling
2 Inch

Electrical and Operational Information

Amperage
12
Horsepower
0.5
Starting Amps
22.5 Amps
Voltage
120

Electrical and Operational Information

Amperage
12
Horsepower
0.5
Starting Amps
22.5 Amps
Voltage
120

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
