Liberty Pumps
Liberty Pumps 230V Automatic Condensate Pump with Safety Switch (20' Lift) N/A
Liberty Pumps 230V Automatic Condensate Pump with Safety Switch (20' Lift) N/A
Alternate Image

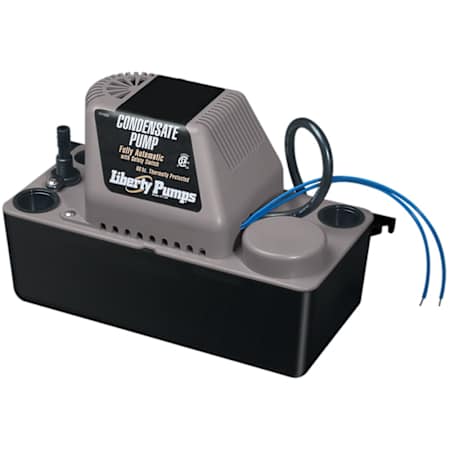

Liberty Pumps 230V Automatic Condensate Pump with Safety Switch (20' Lift)

Model: LCU220S
|
Item: bci2000249

$78.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Product Information:

  • 230-Volt Automatic Condensate Removal Pump: Capable of pumping up to 20' vertically

  • Built-In Safety Switch: Prevents overflow from a clogged discharge or pump failure

  • Versatile Design: Great for high efficiency furnaces, A/C equipment and dehumidifiers

  • Thermally Protected 230V 1/30 HP Motor: Energy efficient .7A motor keep operating costs low

  • 1/2 Gallon High-Impact ABS Tank: Provides plenty of volume which prevents constant cycling

  • 3 Inlet Drain Holes and 3/8" O.D. Outlet
    • Universal design for multiple applications
    • Barbed and threaded discharge connection for ease of use

  • Removable Check Valve: Makes this pump easy to maintain

  • Stainless Steel Shaft: Corrosion resistant design for longer pump life

  • 6' Power Cord with Ground: Just the right length for HVAC applications

  • 3-Year Limited Warranty

Additional Liberty Pumps Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

Flow Rate (GPM)
1.75
Inlet Diameter
1.25 in.
Length
11.125 in.
Maximum Head Height
20 in.
Outlet Diameter
0.375 in.
Product Weight
5 lbs.
Width
5 in.

Dimensions and Measurements

Flow Rate (GPM)
1.75
Inlet Diameter
1.25 in.
Length
11.125 in.
Maximum Head Height
20 in.
Outlet Diameter
0.375 in.
Product Weight
5 lbs.
Width
5 in.

Characteristics and Features

Automatic
Yes
Housing Material
Thermoplastic
Impeller Material
Plastic
Material Casing
Plastic
Material Shaft
Stainless Steel
Shutoff Head in Feet
20
Submersible
No

Characteristics and Features

Automatic
Yes
Housing Material
Thermoplastic
Impeller Material
Plastic
Material Casing
Plastic
Material Shaft
Stainless Steel
Shutoff Head in Feet
20
Submersible
No

Electrical and Operational Information

Amperage
0.7
Horsepower
0.03
Maximum Fluid Temperature
150 °F
Voltage
240

Electrical and Operational Information

Amperage
0.7
Horsepower
0.03
Maximum Fluid Temperature
150 °F
Voltage
240

Warranty and Product Information

CARB approved
Yes
Manufacturer Warranty
3 Year

Warranty and Product Information

CARB approved
Yes
Manufacturer Warranty
3 Year
