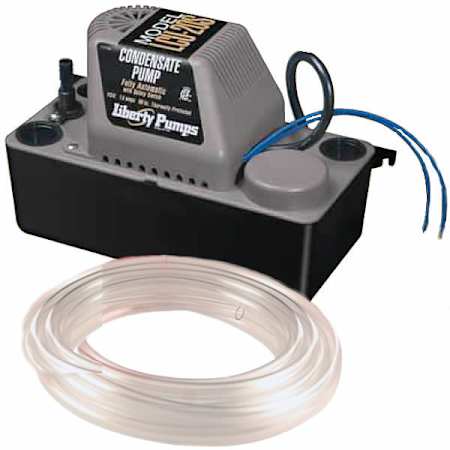

Liberty Pumps Automatic Condensate Pump with Safety Switch and Tubing (20' Lift)
Model: LCU-20ST|Item: bci3813130
from theN/A Collection
$86.25
14 In Stock
Details
Product Information:
- Automatic Condensate Removal Pump with Discharge Tubing: Pumps up to 20' vertically; Pump and tubing for quicker install
- 20' 3/8" Clear Poly Discharge Tubing: Why hook your new pump to an old corroded discharge line
- Built-In Safety Switch: Prevents overflow from a clogged discharge or pump failure
- Versatile Design: Great for high efficiency furnaces, A/C equipment and dehumidifiers
- Thermally Protected 1/30 HP Motor: Energy efficient 1.5A motor keep operating costs low
- 1/2 Gallon High-Impact ABS Tank: Provides plenty of volume which prevents constant cycling
- (3) 1/2" Inlet Drain Holes and 3/8" O.D. Outlet
- Universal design for multiple applications
- Barbed and threaded discharge connection for ease of use
- Stainless Steel Shaft and Removable Check Valve: Corrosion resistant design for easier maintenance and longer life
- 6' Power Cord: Just the right length for HVAC applications
- 3-Year Limited Warranty
Dimensions and Measurements
Depth | 11.13 in. |
Discharge Diameter | 0.375 in. |
Flow Rate (GPM) | 1.75 |
Height | 6.80 in. |
Inlet Diameter | 1.25 in. |
Length | 11.125 in. |
Outlet Diameter | 0.375 in. |
Product Weight | 6 lbs. |
Width | 5 in. |
Dimensions and Measurements
Depth | 11.13 in. |
Discharge Diameter | 0.375 in. |
Flow Rate (GPM) | 1.75 |
Height | 6.80 in. |
Inlet Diameter | 1.25 in. |
Length | 11.125 in. |
Outlet Diameter | 0.375 in. |
Product Weight | 6 lbs. |
Width | 5 in. |
Characteristics and Features
Automatic | Yes |
Housing Material | Thermoplastic |
Shutoff Head in Feet | 20 |
Submersible | No |
Characteristics and Features
Automatic | Yes |
Housing Material | Thermoplastic |
Shutoff Head in Feet | 20 |
Submersible | No |
Electrical and Operational Information
Amperage | 1.5 |
Horsepower | 0.3 |
Maximum Temperature | 150.00 |
Self Priming | Yes |
Voltage | 120 |
Electrical and Operational Information
Amperage | 1.5 |
Horsepower | 0.3 |
Maximum Temperature | 150.00 |
Self Priming | Yes |
Voltage | 120 |
Warranty and Product Information
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Manufacturer Warranty | 3 Year |
