Liberty Pumps
Liberty Pumps Automatic Condensate Pump with Safety Switch (20' Lift) N/A
Liberty Pumps Automatic Condensate Pump with Safety Switch (20' Lift) N/A
Alternate Image

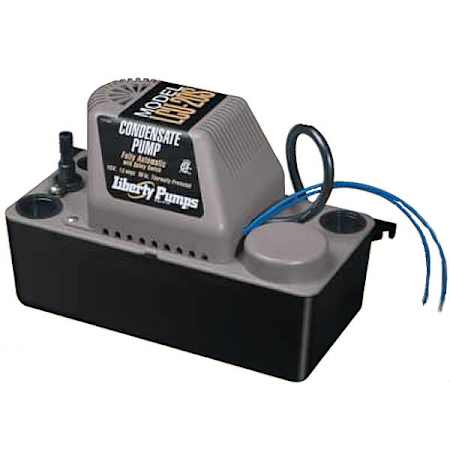

Liberty Pumps Automatic Condensate Pump with Safety Switch (20' Lift)

Model: LCU-20S
|
Item: bci2000248

$78.83
4 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Tomorrow, October 23rd
-
Return & Shipping Details

Details

Product Information:

  • Automatic Condensate Removal Pump: Capable of pumping up to 20' vertically

  • Built-In Safety Switch: Prevents overflow from a clogged discharge or pump failure

  • Versatile Design: Great for high efficiency furnaces, A/C equipment and dehumidifiers

  • Thermally Protected 1/30 HP Motor: Energy efficient 1.5A motor keep operating costs low

  • 1/2 Gallon High-Impact ABS Tank: Provides plenty of volume which prevents constant cycling

  • 3 Inlet Drain Holes and 3/8" O.D. Outlet
    • Universal design for multiple applications
    • Barbed and threaded discharge connection for ease of use

  • Removable Check Valve: Makes this pump easy to maintain

  • Stainless Steel Shaft: Corrosion resistant design for longer pump life

  • 6' Power Cord: Just the right length for HVAC applications

  • 3-Year Limited Warranty

Specifications

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

Flow Rate (GPM)
1.75
Inlet Diameter
1.25 in.
Length
11.125 in.
Maximum Head Height
20 ft.
Outlet Diameter
0.375 in.
Product Weight
5 lbs.
Width
5 in.

Dimensions and Measurements

Flow Rate (GPM)
1.75
Inlet Diameter
1.25 in.
Length
11.125 in.
Maximum Head Height
20 ft.
Outlet Diameter
0.375 in.
Product Weight
5 lbs.
Width
5 in.

Characteristics and Features

Automatic
Yes
Material Casing
Plastic
Material Shaft
Stainless Steel
Shutoff Head in Feet
21
Submersible
No

Characteristics and Features

Automatic
Yes
Material Casing
Plastic
Material Shaft
Stainless Steel
Shutoff Head in Feet
21
Submersible
No

Electrical and Operational Information

Amperage
1.5
Electrical Phases
1
Horsepower
.033
Maximum Fluid Temperature
150 °F
Self Priming
Yes
Voltage
120

Electrical and Operational Information

Amperage
1.5
Electrical Phases
1
Horsepower
.033
Maximum Fluid Temperature
150 °F
Self Priming
Yes
Voltage
120

Warranty and Product Information

CARB approved
Yes
Manufacturer Warranty
3 Year

Warranty and Product Information

CARB approved
Yes
Manufacturer Warranty
3 Year
