Liberty Pumps
Liberty Pumps 1/2 HP Aluminum High Temperature Submersible Sump Pump with Piggyback Float N/A

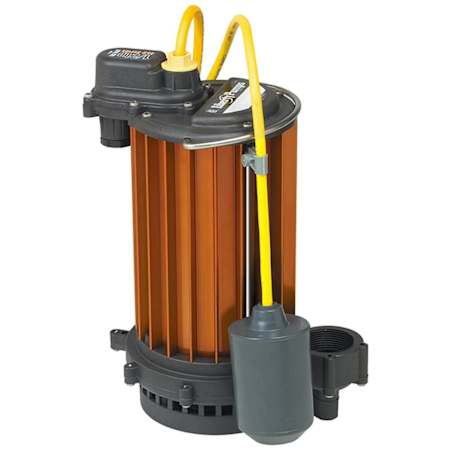

Liberty Pumps 1/2 HP Aluminum High Temperature Submersible Sump Pump with Piggyback Float

Model: HT453
|
Item: bci5171518

$436.50
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Features:

  • Automatic High-Temperature Aluminum Sump Pump: Designed for high temperature applications (180° F. Max)

  • Deep Finned Powder Coated Aluminum Motor Housing: Provides 225% more cooling capacity than cast iron housings

  • Quick-Disconnect Wide Angle Piggyback Tether Float Switch: High temperature design, provides automatic operation

  • Rugged and Thermally Protected 1/2 HP Motor: Hermetically sealed, permanently lubricated design

  • High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling

  • High Capacity 1-1/2" Discharge: Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Standard Power Cord: Allows for easy replacement of cord without breaking motor seal

  • Removable Pump Base: Allows for suction down to 1/8"

  • Non-Corrosive Stainless Steel Fasteners and Rotor Shaft
    • Increases the lifespan of the pump even in the harshest sump pits
    • Permanently lubricated upper/lower bearings for extended life

  • 3-Year Limited Warranty

Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5 in.
Flow Rate by Feet of Head
2220 gal / 10 ft, 1800 gal / 15 ft, 1200 gal / 20 ft, 3180 gal / 0 ft, 2700 gal / 5 ft
Height
12.4 in.
Length
9.65 in.
Product Weight
11 lbs.
Width
7.06 in.

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5 in.
Flow Rate by Feet of Head
2220 gal / 10 ft, 1800 gal / 15 ft, 1200 gal / 20 ft, 3180 gal / 0 ft, 2700 gal / 5 ft
Height
12.4 in.
Length
9.65 in.
Product Weight
11 lbs.
Width
7.06 in.

Included Components

Built-In Check Valve
No

Included Components

Built-In Check Valve
No

Characteristics and Features

Automatic
Yes
Base Material
Plastic
Float Type
Tether Switch
Housing Material
Aluminum
Impeller Material
Composite
Manual Override
Yes
Shutoff Head in Feet
34
Solid Handling
3/8 Inch

Characteristics and Features

Automatic
Yes
Base Material
Plastic
Float Type
Tether Switch
Housing Material
Aluminum
Impeller Material
Composite
Manual Override
Yes
Shutoff Head in Feet
34
Solid Handling
3/8 Inch

Electrical and Operational Information

Amperage
7.3
Backup GPH @ 0 feet
3120 GPH
Backup GPH @ 10 feet
2580 GPH
Backup GPH @ 15 feet
2340 GPH
Backup GPH @ 20 feet
1920 GPH
Backup GPH @ 5 feet
3000 GPH
Horsepower
0.5
Starting Amps
16 Amps
Voltage
120

Electrical and Operational Information

Amperage
7.3
Backup GPH @ 0 feet
3120 GPH
Backup GPH @ 10 feet
2580 GPH
Backup GPH @ 15 feet
2340 GPH
Backup GPH @ 20 feet
1920 GPH
Backup GPH @ 5 feet
3000 GPH
Horsepower
0.5
Starting Amps
16 Amps
Voltage
120

Warranty and Product Information

Manufacturer Warranty
3 Year Residential

Warranty and Product Information

Manufacturer Warranty
3 Year Residential
