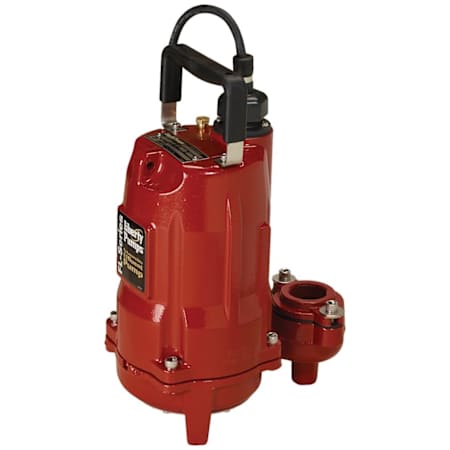

Liberty Pumps 6/10 HP Cast Iron Effluent Pump (Non-Automatic) (50' Cord - Bare Lead)
Model: FLH61M-5|Item: bci3813109
from theN/A Collection
Details
Features:
- ***NON-AUTOMATIC - Requires Float Switch or Controller***
- Submersible Cast Iron Effluent Pump: Designed for septic systems that require less than 68' head
- Heavy-Duty Epoxy Powder Coated Cast Iron Construction: Designed to provide years of reliable performance
- Rugged and Thermally Protected 6/10 HP Motor: Hermetically sealed, permanently lubricated design
- Enclosed Cast Iron Impeller: Minimizes clogging and passes spherical solids up to 3/4"
- High Capacity 2" Discharge w/ 1-1/2" Discharge Flange: Will replace most pumps without any plumbing changes
- Quick-Disconnect 50' Power Cord - Bare Lead: Allows for easy replacement of cord without breaking motor seals
- 416 Stainless Steel Rotor Shaft w/ Unitized Carbon/Ceramic Seal: With permanently lubricated bearings for extended pump life
- Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest systems
- 3 Year Limited Warranty
Dimensions and Measurements
Cord Length | 50 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate by Feet of Head | 95 gal / 5 ft |
Maximum Diameter Solids | 0.75 in. |
Dimensions and Measurements
Cord Length | 50 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate by Feet of Head | 95 gal / 5 ft |
Maximum Diameter Solids | 0.75 in. |
Included Components
Alarm Included | Yes |
Included Components
Alarm Included | Yes |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Manual Override | Yes |
Shutoff Head in Feet | 70 |
Submersible | Yes |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Manual Override | Yes |
Shutoff Head in Feet | 70 |
Submersible | Yes |
Electrical and Operational Information
Amperage | 12 |
Electrical Phases | 1 |
Horsepower | 0.6 |
Starting Amps | 41 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 12 |
Electrical Phases | 1 |
Horsepower | 0.6 |
Starting Amps | 41 Amps |
Voltage | 120 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
