Liberty Pumps
Liberty Pumps 6/10 HP Cast Iron Effluent Pump with Piggyback Tether Float N/A
Alternate Image
Liberty Pumps 6/10 HP Cast Iron Effluent Pump with Piggyback Tether Float N/A
Alternate Image

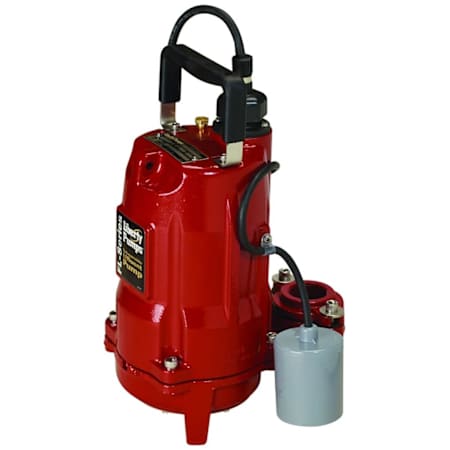

Liberty Pumps 6/10 HP Cast Iron Effluent Pump with Piggyback Tether Float

Model: FLH61A
|
Item: bci3813103

$942.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Features:

  • Automatic Submersible Cast Iron Effluent Pump: Designed for septic systems that require less than 68' head

  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction: Designed to provide years of reliable performance

  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch: Provides automatic or manual operation via piggyback plug

  • Rugged and Thermally Protected 6/10 HP Motor: Hermetically sealed, permanently lubricated design

  • Enclosed Cast Iron Impeller: Minimizes clogging and passes spherical solids up to 3/4"

  • High Capacity 2" Discharge w/ 1-1/2" Discharge Flange: Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Power Cord: Allows for easy replacement of cord without breaking motor seals

  • 416 Stainless Steel Rotor Shaft w/ Unitized Carbon/Ceramic Seal: With permanently lubricated bearings for extended pump life

  • Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest systems

  • 3 Year Limited Warranty

Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5, 2 in.
Flow Rate by Feet of Head
95 gal / 5 ft
Maximum Diameter Solids
0.75 in.

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5, 2 in.
Flow Rate by Feet of Head
95 gal / 5 ft
Maximum Diameter Solids
0.75 in.

Characteristics and Features

Automatic
Yes
Base Material
Iron
Float Type
Tether Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
Yes
Shutoff Head in Feet
70
Submersible
Yes

Characteristics and Features

Automatic
Yes
Base Material
Iron
Float Type
Tether Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
Yes
Shutoff Head in Feet
70
Submersible
Yes

Electrical and Operational Information

Amperage
12
Electrical Phases
1
Horsepower
0.6
Starting Amps
41 Amps
Voltage
120

Electrical and Operational Information

Amperage
12
Electrical Phases
1
Horsepower
0.6
Starting Amps
41 Amps
Voltage
120

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
