Liberty Pumps
Liberty Pumps 3/4 HP Cast Iron Effluent Pump (Non-Automatic) (50' Cord - Bare Lead) (208-230V) N/A
Alternate Image
Liberty Pumps 3/4 HP Cast Iron Effluent Pump (Non-Automatic) (50' Cord - Bare Lead) (208-230V) N/A
Alternate Image

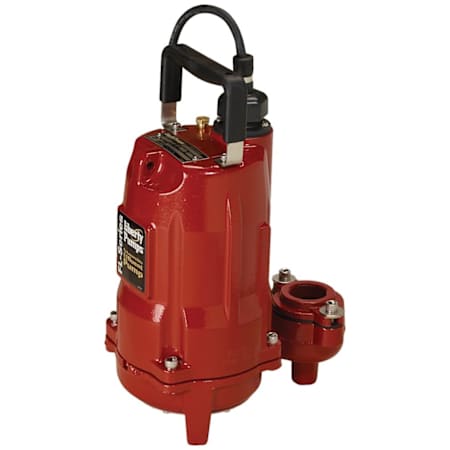

Liberty Pumps 3/4 HP Cast Iron Effluent Pump (Non-Automatic) (50' Cord - Bare Lead) (208-230V)

Model: FL72M-5
|
Item: bci3813100

$975.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Features:

  • ***208-230V***: ***NON-AUTOMATIC - Requires Float Switch or Controller***

  • Submersible Cast Iron Effluent Pump: Designed for septic systems that require less than 87' head

  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction: Designed to provide years of reliable performance

  • Rugged and Thermally Protected 3/4 HP Motor (208-230V): Hermetically sealed, permanently lubricated design

  • Semi-Open Cast Iron Impeller: Minimizes clogging and passes spherical solids up to 3/4"

  • High Capacity 2" Discharge w/ 1-1/2" Discharge Flange: Will replace most pumps without any plumbing changes

  • Quick-Disconnect 50' Power Cord - Bare Lead: Allows for easy replacement of cord without breaking motor seals

  • 416 Stainless Steel Rotor Shaft w/ Unitized Carbon/Ceramic Seal: With permanently lubricated bearings for extended pump life

  • Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest systems

  • 3 Year Limited Warranty

Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
50 in.
Discharge Diameter
1.5, 2 in.
Maximum Diameter Solids
0.75 in.

Dimensions and Measurements

Cord Length
50 in.
Discharge Diameter
1.5, 2 in.
Maximum Diameter Solids
0.75 in.

Characteristics and Features

Automatic
No
Base Material
Iron
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
Yes
Shutoff Head in Feet
77
Submersible
Yes

Characteristics and Features

Automatic
No
Base Material
Iron
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
Yes
Shutoff Head in Feet
77
Submersible
Yes

Electrical and Operational Information

Amperage
10.5
Electrical Phases
1
Horsepower
0.75
Voltage
230

Electrical and Operational Information

Amperage
10.5
Electrical Phases
1
Horsepower
0.75
Voltage
230

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
