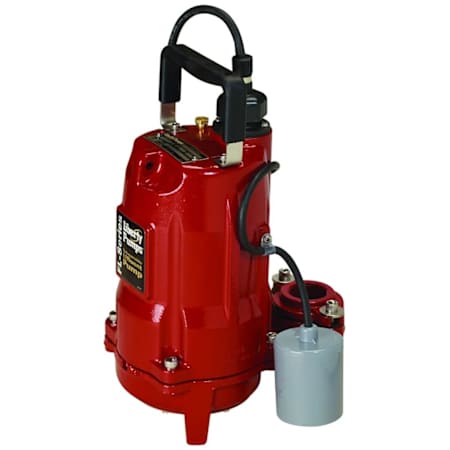

Liberty Pumps 1/2 HP Cast Iron Effluent Pump with Piggyback Tether Float (25' Cord)
Model: FL51A-2|Item: bci5171538
Details
Features:
- Automatic Submersible Cast Iron Effluent Pump: Designed for septic systems that require less than 55' head
- Quick-Disconnect 25' Standard Power Cord: Great for applications when an outlet is farther away
- Heavy-Duty Epoxy Powder Coated Cast Iron Construction: Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch: Provides automatic or manual operation via piggyback plug
- Rugged and Thermally Protected 1/2 HP Motor: Hermetically sealed, permanently lubricated design
- Semi-Open Cast Iron Impeller: Minimizes clogging and passes spherical solids up to 3/4"
- High Capacity 2" Discharge w/ 1-1/2" Discharge Flange: Will replace most pumps without any plumbing changes
- 416 Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal: With permanently lubricated bearings for extended pump life
- Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest systems
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 25 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate by Feet of Head | 3360 gal / 15 ft, 3210 gal / 20 ft, 3360 gal / 0 ft |
Height | 13.5 in. |
Length | 10.2 in. |
Maximum Diameter Solids | 0.75 in. |
Dimensions and Measurements
Cord Length | 25 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate by Feet of Head | 3360 gal / 15 ft, 3210 gal / 20 ft, 3360 gal / 0 ft |
Height | 13.5 in. |
Length | 10.2 in. |
Maximum Diameter Solids | 0.75 in. |
Included Components
Built-In Check Valve | No |
Included Components
Built-In Check Valve | No |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Manual Override | Yes |
Shutoff Head in Feet | 55 |
Solid Handling | 1/2 Inch |
Submersible | Yes |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Manual Override | Yes |
Shutoff Head in Feet | 55 |
Solid Handling | 1/2 Inch |
Submersible | Yes |
Electrical and Operational Information
Amperage | 12 |
Horsepower | 0.5 |
Starting Amps | 41 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 12 |
Horsepower | 0.5 |
Starting Amps | 41 Amps |
Voltage | 120 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
