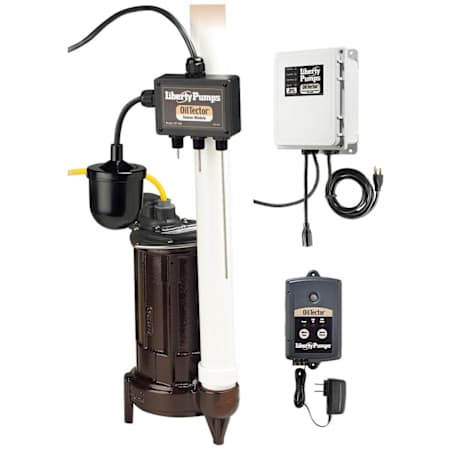

Liberty Pumps 1/3 HP Cast Iron Elevator Sump Pump System with OilTector Control and Alarm
Model: ELV250|Item: bci5171606
Details
Features:
- 1/3 HP ELV-Series OilTector Elevator Sump Pump System
- For elevator sump pits, transformer vaults and other applications
- For applications where oil and water must be detected
- OilTector System - ASME A17.1 Compliant
- Activates the pump to remove water from the pit
- Stops the pump before oil/harmful substances are discharged
- Heavy-Duty Cast Iron 1/3 HP Sump Pump: With 25-foot oil-resistant SJEOOW cord for added protection
- Easy Installation: No field adjustments required, just install and plug-in
- NEMA 1 Control Panel: Separate pump and control circuits for added protection
- Remote Alarm w/ Audio/Visual Warnings
- Also provides additional auxiliary (24 VDC) contacts
- For connection to building automation system or SCADA system
- Easy To Read Warning Lights: Power on, pump run, high water and high oil
- Includes:: 1/3 HP Sump Pump, Level Sensor, Alarm and Control Panel
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 3000 gal / 0 ft, 840 gal / 20 ft, 2160 gal / 10 ft, 2640 gal / 5 ft, 1560 gal / 15 ft |
Product Weight | 30 lbs. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 3000 gal / 0 ft, 840 gal / 20 ft, 2160 gal / 10 ft, 2640 gal / 5 ft, 1560 gal / 15 ft |
Product Weight | 30 lbs. |
Included Components
Built-In Check Valve | No |
Included Components
Built-In Check Valve | No |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Composite |
Manual Override | Yes |
Shutoff Head in Feet | 22.9 |
Solid Handling | 1/2 Inch |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Composite |
Manual Override | Yes |
Shutoff Head in Feet | 22.9 |
Solid Handling | 1/2 Inch |
Electrical and Operational Information
Amperage | 11 |
Backup GPH @ 0 feet | 10200 GPH |
Backup GPH @ 10 feet | 7500 GPH |
Backup GPH @ 15 feet | 6300 GPH |
Backup GPH @ 20 feet | 2400 GPH |
Backup GPH @ 5 feet | 9180 GPH |
Horsepower | 0.33 |
Starting Amps | 8 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 11 |
Backup GPH @ 0 feet | 10200 GPH |
Backup GPH @ 10 feet | 7500 GPH |
Backup GPH @ 15 feet | 6300 GPH |
Backup GPH @ 20 feet | 2400 GPH |
Backup GPH @ 5 feet | 9180 GPH |
Horsepower | 0.33 |
Starting Amps | 8 Amps |
Voltage | 120 |
Warranty and Product Information
Manufacturer Warranty | 5 |
Warranty and Product Information
Manufacturer Warranty | 5 |
