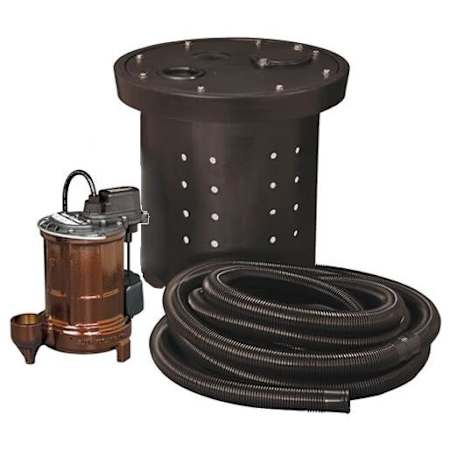

Liberty Pumps 1/3 HP Cast Iron Crawl Space Sump Pump Kit
Model: CSP-257|Item: bci5171569
Details
Features:
- 1/3 HP Cast Iron Sump Pump Kit: Great for crawl spaces and low lying areas around foundations
- Automatic Submersible 1/3 HP Cast Iron Sump Pump (257): Rugged, energy efficient and thermally protected motor
- Liberty's UNI-BODY Casting w/ Epoxy Powder Coat Finish: A solid, one-piece housing that eliminates lower motor seal
- Magnetically Operated Vertical Float Switch: Provides automatic operation in sump pits as small as 10-inches
- High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling
- Non-Corrosive Stainless Steel Fasteners and Rotor Shaft
- Increases the lifespan of the pump even in the harshest sump pits
- Permanently lubricated bearings for extended pump life
- Added Pump Features: High Capacity 1-1/2" Discharge and Quick-Disconnect 10' Power Cord
- Also Includes:
- 16.5" Wide x 15" Tall Perforated Poly Sump Basin
- Inline Check Valve (Not Pictured)
- 24' x 1-1/4" Flexible Discharge Hose
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 720 gal / 20 ft, 2700 gal / 5 ft, 3000 gal / 0 ft, 2250 gal / 10 ft, 1560 gal / 15 ft |
Height | 16.5 in. |
Length | 15 in. |
Min Float Off | 3.5 in. |
Min Float On | 7 in. |
Product Weight | 15 lbs. |
Width | 15 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 720 gal / 20 ft, 2700 gal / 5 ft, 3000 gal / 0 ft, 2250 gal / 10 ft, 1560 gal / 15 ft |
Height | 16.5 in. |
Length | 15 in. |
Min Float Off | 3.5 in. |
Min Float On | 7 in. |
Product Weight | 15 lbs. |
Width | 15 in. |
Included Components
Built-In Check Valve | Yes |
Included Components
Built-In Check Valve | Yes |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Composite |
Manual Override | No |
Shutoff Head in Feet | 18 |
Solid Handling | 1/2 Inch |
Submersible | Yes |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Composite |
Manual Override | No |
Shutoff Head in Feet | 18 |
Solid Handling | 1/2 Inch |
Submersible | Yes |
Electrical and Operational Information
Amperage | 5.2 |
Backup GPH @ 0 feet | 3000 GPH |
Backup GPH @ 10 feet | 2250 GPH |
Backup GPH @ 15 feet | 1560 GPH |
Backup GPH @ 20 feet | 720 GPH |
Backup GPH @ 5 feet | 2700 GPH |
Horsepower | 0.33 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 5.2 |
Backup GPH @ 0 feet | 3000 GPH |
Backup GPH @ 10 feet | 2250 GPH |
Backup GPH @ 15 feet | 1560 GPH |
Backup GPH @ 20 feet | 720 GPH |
Backup GPH @ 5 feet | 2700 GPH |
Horsepower | 0.33 |
Voltage | 120 |
Warranty and Product Information
Manufacturer Warranty | 3 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 3 Year Residential |
