Liberty Pumps
Liberty Pumps 1/2 HP Complete Bathroom Toilet with Macerator System (Elongated Bowl - White) N/A

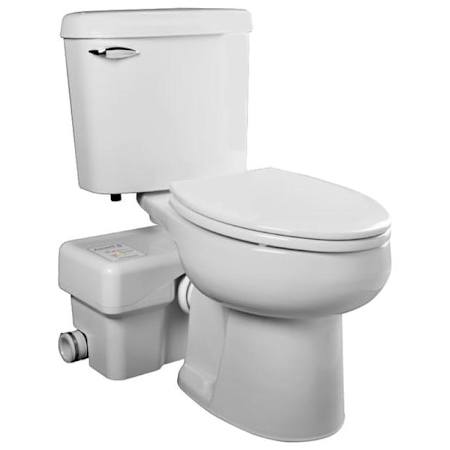

Liberty Pumps 1/2 HP Complete Bathroom Toilet with Macerator System (Elongated Bowl - White)

Model: ASCENTII-ESW
|
Item: bci5171381

$1,270.50
Special Order
placeholder
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details



Features:

  • Liberty Ascent II Macerating Toilet System (Elongated Bowl): Complete system for easier bathroom addition or remodeling

  • Versatile Design
    • Pumps wastewater *up to 25' lift and 150' horizontally
    • Accepts additional tub/shower/sink connections for a complete bathroom
  • 1/2 HP Macerator Pump w/ RazorCut Technology
    • Powerful and quiet stainless steel blades provide exceptional cutting
    • Advance run technology starts blades before debris enters cutter basket
  • IST Intelligent Solid State Switch Technology
    • Sensor based design eliminates mechanical float switches
    • Easy-to-read LED display; Power On, Alarm Condition and Low Alarm Battery
  • Built-In Alarm w/ 9V Battery Backup: Plus a push-to-silence switch for easier operation

  • QuickFlip Discharge and Vent Connectors
    • Allows for horizontal or vertical pipe connections
    • 1" Discharge w/ integral check valve (can be reduced to 3/4"); 1-1/2" Vent
  • Contoured Tank Design w/ Auxiliary Inlets On Each Side
    • Makes it easy to add a sink and/or shower; Accepts 1-1/2" or 2" pipe
    • Allows for wall molding to run behind macerator for a finished look
  • CleanConnect Seal: No more accordion style couplers/hose clamps; Provides a clean, professional install

  • Removable Access Cover and Cord Management System
    • Located on top cover for easy access without the need for any tools
    • Keeps extra power cord hidden under cover for a professional finish
  • Elongated, ADA Compliant Porcelain White Toilet Bowl w/ Plastic Seat
    • HET (High Efficienct Toilet) 1.28 gpf; Improved flush design for one-flush operation
    • Insulated tank prevents sweating in extreme climates
    • Installed flush valve kit and includes toilet seat
  • *Please See Spec Sheet For Additional System Information

  • 3-Year Limited Warranty




  •
  •
  •



Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Bowl Height
17.375 in.
Cord Length
8 in.
Depth
29.675 in.
Discharge Diameter
1 in.
Gallons Per Flush
1.28
Height
32.25 in.
Product Weight
110 lbs.
Trapway
2.75 in.
Width
18.25 in.

Dimensions and Measurements

Bowl Height
17.375 in.
Cord Length
8 in.
Depth
29.675 in.
Discharge Diameter
1 in.
Gallons Per Flush
1.28
Height
32.25 in.
Product Weight
110 lbs.
Trapway
2.75 in.
Width
18.25 in.

Included Components

Angle Supply Included
No
Seat Included
Yes

Included Components

Angle Supply Included
No
Seat Included
Yes

Characteristics and Features

Base Material
Plastic
Bowl Shape
Elongated
Configuration
Two Piece
Design Features
Concealed Trapway, Chair Height
Handles Solids
Yes
Housing Material
Plastic
Impeller Material
Plastic
Installation Type
Floor Mounted
Material
Vitreous China
Seat Front
Closed
Trip Lever Finish
Chrome
Trip Lever Placement
Left
Water Efficient
Yes

Characteristics and Features

Base Material
Plastic
Bowl Shape
Elongated
Configuration
Two Piece
Design Features
Concealed Trapway, Chair Height
Handles Solids
Yes
Housing Material
Plastic
Impeller Material
Plastic
Installation Type
Floor Mounted
Material
Vitreous China
Seat Front
Closed
Trip Lever Finish
Chrome
Trip Lever Placement
Left
Water Efficient
Yes

Electrical and Operational Information

Amperage
7.9
Horsepower
0.5
Voltage
120

Electrical and Operational Information

Amperage
7.9
Horsepower
0.5
Voltage
120

Warranty and Product Information

ADA
Yes
CA Drought Compliant
Yes
Certifications
UPC, ANSI, ASME, CSA
Collection
Ascent II, Comfort Height
Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
TX Drought Compliant
Yes
WaterSense Certified
Yes

Warranty and Product Information

ADA
Yes
CA Drought Compliant
Yes
Certifications
UPC, ANSI, ASME, CSA
Collection
Ascent II, Comfort Height
Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
TX Drought Compliant
Yes
WaterSense Certified
Yes

Reviews

(5)
4.2 out of 5 Stars
