Liberty Pumps
Liberty Pumps 1/2 HP Aluminum Submersible Sump Pump with Vertical Float N/A
Alternate Image
Liberty Pumps 1/2 HP Aluminum Submersible Sump Pump with Vertical Float N/A
Alternate Image

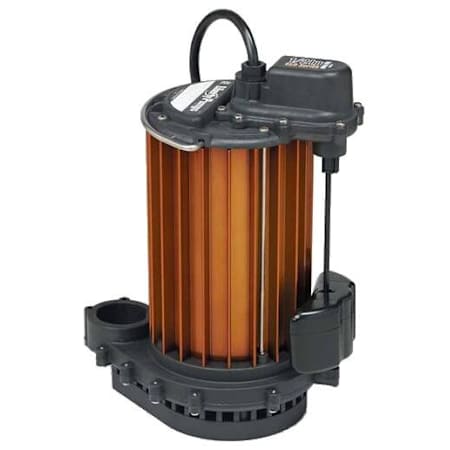

Liberty Pumps 1/2 HP Aluminum Submersible Sump Pump with Vertical Float

Model: 457
|
Item: bci5171541

$264.75
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details



Features:

  • Automatic Aluminum/Polypropylene Sump Pump: A superior value for average water removal

  • Deep Finned Powder Coated Aluminum Motor Housing: Provides 225% more cooling capacity than cast iron housings

  • Magnetically Operated Vertical Float Switch: Provides automatic operation in sump pits as small as 10-inches

  • Rugged and Thermally Protected 1/2 HP Motor: Hermetically sealed, permanently lubricated design

  • High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling

  • High Capacity 1-1/2" Discharge: Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Standard Power Cord: Allows for easy replacement of cord without breaking motor seal

  • Removable Pump Base: Allows for suction down to 1/8"

  • Non-Corrosive Stainless Steel Fasteners and Rotor Shaft
    • Increases the lifespan of the pump even in the harshest sump pits
    • Permanently lubricated upper/lower bearings for extended life
  • 3-Year Limited Warranty


  •



Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5, 3 in.
Flow Rate by Feet of Head
2940 gal / 5 ft, 2340 gal / 15 ft, 3180 gal / 0 ft, 1980 gal / 20 ft, 2640 gal / 10 ft
Height
12.4 in.
Length
13.75 in.
Min Float Off
4 in.
Min Float On
8.5 in.
Width
7 in.

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5, 3 in.
Flow Rate by Feet of Head
2940 gal / 5 ft, 2340 gal / 15 ft, 3180 gal / 0 ft, 1980 gal / 20 ft, 2640 gal / 10 ft
Height
12.4 in.
Length
13.75 in.
Min Float Off
4 in.
Min Float On
8.5 in.
Width
7 in.

Included Components

Built-In Check Valve
No

Included Components

Built-In Check Valve
No

Characteristics and Features

Automatic
Yes
Base Material
Plastic
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Aluminum
Impeller Material
Composite
Manual Override
No
Shutoff Head in Feet
37
Solid Handling
3/8 Inch

Characteristics and Features

Automatic
Yes
Base Material
Plastic
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Aluminum
Impeller Material
Composite
Manual Override
No
Shutoff Head in Feet
37
Solid Handling
3/8 Inch

Electrical and Operational Information

Amperage
7.5
Backup GPH @ 0 feet
3180 GPH
Backup GPH @ 10 feet
2640 GPH
Backup GPH @ 15 feet
2340 GPH
Backup GPH @ 20 feet
1980 GPH
Backup GPH @ 5 feet
2940 GPH
Horsepower
0.5
Starting Amps
16 Amps
Voltage
120

Electrical and Operational Information

Amperage
7.5
Backup GPH @ 0 feet
3180 GPH
Backup GPH @ 10 feet
2640 GPH
Backup GPH @ 15 feet
2340 GPH
Backup GPH @ 20 feet
1980 GPH
Backup GPH @ 5 feet
2940 GPH
Horsepower
0.5
Starting Amps
16 Amps
Voltage
120

Warranty and Product Information

Manufacturer Warranty
3 Year Residential

Warranty and Product Information

Manufacturer Warranty
3 Year Residential
