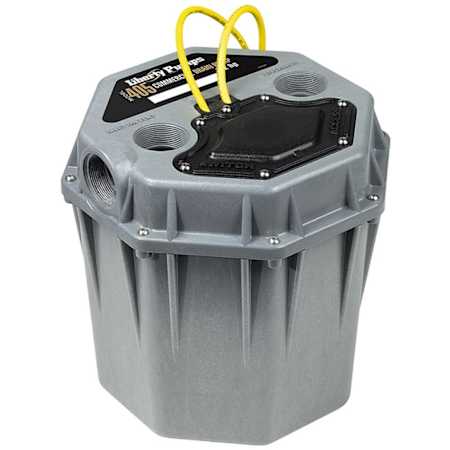

Liberty Pumps 1/2 HP High-Temperature Commercial Sink/Drain Pump System (2")
Model: 405|Item: bci5171517
Details
Features:
- Automatic Commercial High-Temperature Remote Drain Pump System: Factory pre-assembled for easy installation
- High-Temperature Aluminum Sump Pump: Designed for high temperature applications (180° F. Max)
- Rugged and Thermally Protected 1/2 HP Motor: Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling up to 3/8"
- Non-Corrosive Stainless Steel Fasteners and Rotor Shaft
- Permanently lubricated upper/lower bearings for extended life
- Corrosion-Resistant Polyolefin Basin (14.125" H x 13.75" W): Great for bar sinks, dishwashers and commercial sinks
- QuickTree Technology and Quick-Disconnect 10' Power Cord
- Separate access cover for easy switch inspection/removal
- Allows for easy replacement of cord without breaking motor seals
- Integrally Molded-In Connections and Rubber Gaskets: Provides a superior, gas-tight seal
- 2" Inlet, Discharge and Vent: Requires 2" Check Valve (Sold Separately)
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 1.25 in. |
Flow Rate by Feet of Head | 3180 gal / 0 ft, 1800 gal / 15 ft, 2700 gal / 5 ft, 2220 gal / 10 ft, 1200 gal / 20 ft |
Height | 14.125 in. |
Inlet Diameter | 4 in. |
Length | 13.75 in. |
Outlet Diameter | 4 in. |
Product Weight | 23 lbs. |
Width | 13.75 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 1.25 in. |
Flow Rate by Feet of Head | 3180 gal / 0 ft, 1800 gal / 15 ft, 2700 gal / 5 ft, 2220 gal / 10 ft, 1200 gal / 20 ft |
Height | 14.125 in. |
Inlet Diameter | 4 in. |
Length | 13.75 in. |
Outlet Diameter | 4 in. |
Product Weight | 23 lbs. |
Width | 13.75 in. |
Included Components
Built-In Check Valve | No |
Included Components
Built-In Check Valve | No |
Characteristics and Features
Automatic | Yes |
Base Material | Aluminum |
Float Type | Tether Switch |
Housing Material | Aluminum |
Impeller Material | Cast Iron |
Manual Override | Yes |
Shutoff Head in Feet | 34 |
Solid Handling | 3/8 Inch |
Characteristics and Features
Automatic | Yes |
Base Material | Aluminum |
Float Type | Tether Switch |
Housing Material | Aluminum |
Impeller Material | Cast Iron |
Manual Override | Yes |
Shutoff Head in Feet | 34 |
Solid Handling | 3/8 Inch |
Electrical and Operational Information
Horsepower | 0.5 |
Starting Amps | 16 Amps |
Voltage | 120 |
Electrical and Operational Information
Horsepower | 0.5 |
Starting Amps | 16 Amps |
Voltage | 120 |
Warranty and Product Information
Manufacturer Warranty | 3 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 3 Year Residential |
