Liberty Pumps
Liberty Pumps 3/4 HP Cast Iron Sump/Effluent Pump with Vertical Float N/A
Alternate Image
Liberty Pumps 3/4 HP Cast Iron Sump/Effluent Pump with Vertical Float N/A
Alternate Image

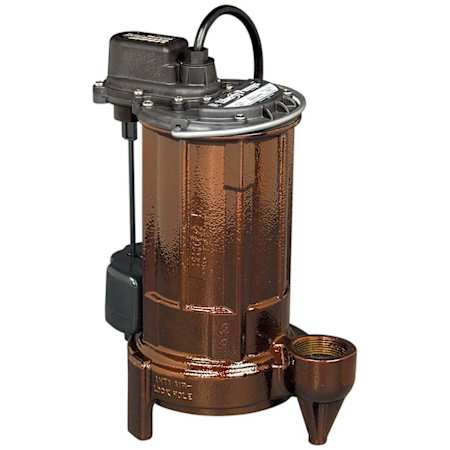

Liberty Pumps 3/4 HP Cast Iron Sump/Effluent Pump with Vertical Float

Model: 297
|
Item: bci3813052

$423.00
14 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Tomorrow, January 16th
-
Return & Shipping Details

Details

Features:

  • Submersible Cast Iron Sump Pump
    • For high head (up to 48') and/or high output applications
    • A solid, one-piece housing that eliminates lower motor seal

  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish

  • Rugged, Energy Efficient and Thermally Protected 3/4 HP Motor: Hermetically sealed, permanently lubricated design

  • Magnetically Operated Vertical Float Switch: Provides automatic operation in sump pits as small as 10-inches

  • High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling

  • High Capacity 1-1/2" Discharge (3/4" Solid Handling): Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Standard Power Cord: Allows for easy replacement of cord without breaking motor seals

  • Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest sump pits

  • 416 Stainless Steel Rotor Shaft: With permanently lubricated bearings for extended pump life

  • Removable Stainless Steel Bottom Screen: Keeps larger debris from damaging the pump

  • 3-Year Limited Warranty

Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
2 in.
Flow Rate by Feet of Head
65 gal / 15 ft, 72 gal / 10 ft
Maximum Diameter Solids
0.75 in.

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
2 in.
Flow Rate by Feet of Head
65 gal / 15 ft, 72 gal / 10 ft
Maximum Diameter Solids
0.75 in.

Characteristics and Features

Automatic
Yes
Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Material
Cast Iron
Shutoff Head in Feet
48

Characteristics and Features

Automatic
Yes
Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Material
Cast Iron
Shutoff Head in Feet
48

Electrical and Operational Information

Amperage
10.4
Horsepower
0.75
Voltage
120
Wattage
1196.00

Electrical and Operational Information

Amperage
10.4
Horsepower
0.75
Voltage
120
Wattage
1196.00

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
