Liberty Pumps
Liberty Pumps 3/4 HP Cast Iron Sump/Effluent Pump (Non-Automatic) N/A
Liberty Pumps 3/4 HP Cast Iron Sump/Effluent Pump (Non-Automatic) N/A
Alternate Image

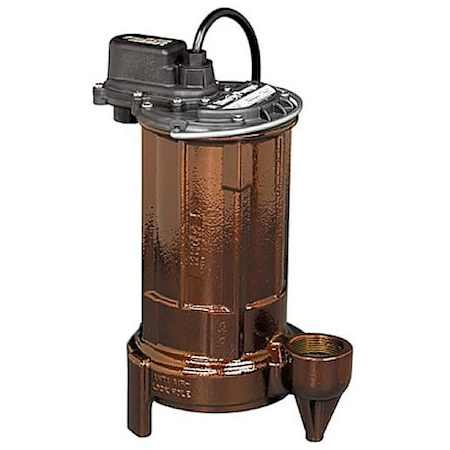

Liberty Pumps 3/4 HP Cast Iron Sump/Effluent Pump (Non-Automatic)

Model: 290
|
Item: bci3069801

$411.00
31 In Stock

Options

N/A
None
$411.00
N/A
Vertical Float
$423.00

Voltage

N/A
120V
$411.00
N/A
208-230V
$426.75
placeholder
Free Shipping!
Leaves the Warehouse Monday, June 15th
-
Return & Shipping Details

Details

Features:

  • ***NON-AUTOMATIC - Requires Float Switch***

  • Submersible Cast Iron Sump Pump: For high head (up to 30') and/or high output applications

  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish: A solid, one-piece housing that eliminates lower motor seal

  • Rugged, Energy Efficient and Thermally Protected 3/4 HP Motor: Hermetically sealed, permanently lubricated design

  • High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling

  • High Capacity 1-1/2" Discharge (3/4" Solid Handling): Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Standard Power Cord: Allows for easy replacement of cord without breaking motor seals

  • Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest sump pits

  • 416 Stainless Steel Rotor Shaft: With permanently lubricated bearings for extended pump life

  • Removable Stainless Steel Bottom Screen: Keeps larger debris from damaging the pump

  • 3-Year Limited Warranty

Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
10 ft.
Discharge Diameter
1.25, 2 in.
Flow Rate (GPM)
78
Height
13 in.
Maximum Head Height
48 ft.
Width
9.5 in.

Dimensions and Measurements

Cord Length
10 ft.
Discharge Diameter
1.25, 2 in.
Flow Rate (GPM)
78
Height
13 in.
Maximum Head Height
48 ft.
Width
9.5 in.

Characteristics and Features

Base Material
Iron
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Material Shaft
Stainless Steel
Pump Material
Cast Iron
Submersible
Yes

Characteristics and Features

Base Material
Iron
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Material Shaft
Stainless Steel
Pump Material
Cast Iron
Submersible
Yes

Electrical and Operational Information

Amperage
10.4
Electrical Phases
1
Horsepower
0.75
Maximum Fluid Temperature
140 °F
Motor RPM
3450
Voltage
120

Electrical and Operational Information

Amperage
10.4
Electrical Phases
1
Horsepower
0.75
Maximum Fluid Temperature
140 °F
Motor RPM
3450
Voltage
120

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
