Liberty Pumps

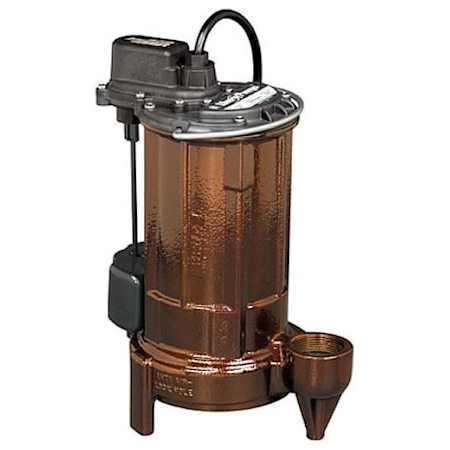

Liberty Pumps 1/2 HP Cast Iron Submersible Sump Pump with Vertical Float N/A
Alternate Image
Liberty Pumps 1/2 HP Cast Iron Submersible Sump Pump with Vertical Float N/A
Alternate Image

Liberty Pumps 1/2 HP Cast Iron Submersible Sump Pump with Vertical Float

Model: 287
|
Item: bci2000259

$336.61
138 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Tomorrow, January 29th
-
Return & Shipping Details

Details

Features:

  • Automatic Submersible Cast Iron Sump Pump: For high head (up to 30') and/or high output applications

  • Liberty's UNI-BODY Casting w/ Epoxy Powder Coat Finish: A solid, one-piece housing that eliminates lower motor seal

  • Magnetically Operated Vertical Float Switch: Provides automatic operation in sump pits as small as 10-inches

  • Rugged, Energy Efficient and Thermally Protected 1/2 HP Motor: Hermetically sealed, permanently lubricated design

  • High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling

  • High Capacity 1-1/2" Discharge: Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Standard Power Cord: Allows for easy replacement of cord without breaking motor seals

  • Non-Corrosive Stainless Steel Fasteners and Bottom Screen
    • Increases the lifespan of the pump even in the harshest sump pits
    • Easily removable screen keeps debris from damaging the pump

  • 416 Stainless Steel Rotor Shaft: With permanently lubricated bearings for extended pump life

  • 3-Year Limited Warranty

Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
25 in.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
70
Height
13 in.
Length
13 in.
Maximum Diameter Solids
0.75 in.
Maximum Head Height
37 in.
Product Weight
31 lbs.
Width
6.5 in.

Dimensions and Measurements

Cord Length
25 in.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
70
Height
13 in.
Length
13 in.
Maximum Diameter Solids
0.75 in.
Maximum Head Height
37 in.
Product Weight
31 lbs.
Width
6.5 in.

Characteristics and Features

Automatic
No
Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Composite
Manual Override
No
Material Casing
Iron
Material Housing
Iron
Material Shaft
Stainless Steel
Shutoff Head in Feet
37
Submersible
Yes

Characteristics and Features

Automatic
No
Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Composite
Manual Override
No
Material Casing
Iron
Material Housing
Iron
Material Shaft
Stainless Steel
Shutoff Head in Feet
37
Submersible
Yes

Electrical and Operational Information

Amperage
8
Backup GPH @ 0 feet
4080 GPH
Backup GPH @ 10 feet
3360 GPH
Backup GPH @ 15 feet
2940 GPH
Backup GPH @ 20 feet
2520 GPH
Backup GPH @ 5 feet
3750 GPH
Electrical Phases
1
Horsepower
0.5
Maximum Fluid Temperature
140 °F
Motor RPM
3450
Starting Amps
23 Amps
Voltage
120

Electrical and Operational Information

Amperage
8
Backup GPH @ 0 feet
4080 GPH
Backup GPH @ 10 feet
3360 GPH
Backup GPH @ 15 feet
2940 GPH
Backup GPH @ 20 feet
2520 GPH
Backup GPH @ 5 feet
3750 GPH
Electrical Phases
1
Horsepower
0.5
Maximum Fluid Temperature
140 °F
Motor RPM
3450
Starting Amps
23 Amps
Voltage
120

Warranty and Product Information

CARB approved
Yes
Manufacturer Warranty
3

Warranty and Product Information

CARB approved
Yes
Manufacturer Warranty
3
