Liberty Pumps
Liberty Pumps 1/2 HP Cast Iron Submersible Sump / Effluent Pump with Piggyback Tether Float (208-230V) N/A
Alternate Image
Liberty Pumps 1/2 HP Cast Iron Submersible Sump / Effluent Pump with Piggyback Tether Float (208-230V) N/A
Alternate Image

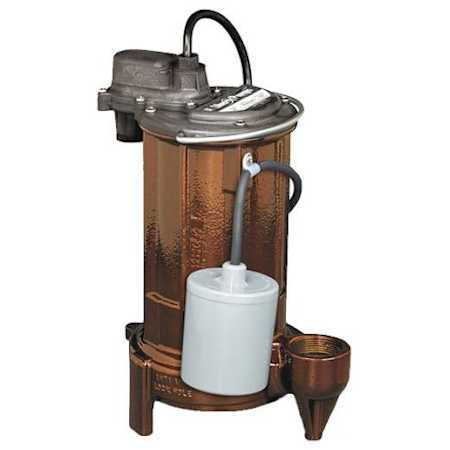

Liberty Pumps 1/2 HP Cast Iron Submersible Sump / Effluent Pump with Piggyback Tether Float (208-230V)

Model: 283HV
|
Item: bci3813034

$396.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Features:

  • ***208-230 Volt***

  • Automatic Submersible Cast Iron Sump Pump: For high head (up to 30') and/or high output applications

  • Quick-Disconnect Wide Angle Piggyback Tether Float Switch: Provides automatic operation in sump pits as small as 14-inches

  • Rugged, Energy Efficient and Thermally Protected 1/2 HP Motor (208-230V): Hermetically sealed, permanently lubricated design

  • High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling

  • High Capacity 1-1/2" Discharge: Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Standard Power Cord: Allows for easy replacement of cord without breaking motor seals

  • Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest sump pits

  • 416 Stainless Steel Rotor Shaft: With permanently lubricated bearings for extended pump life

  • Removable Stainless Steel Bottom Screen: Keeps larger debris from damaging the pump

  • 3-Year Limited Warranty

Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5 in.
Flow Rate by Feet of Head
49 gal / 15 ft
Maximum Diameter Solids
0.75 in.

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5 in.
Flow Rate by Feet of Head
49 gal / 15 ft
Maximum Diameter Solids
0.75 in.

Characteristics and Features

Automatic
Yes
Base Material
Iron
Float Type
Tether Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Material
Cast Iron
Shutoff Head in Feet
37

Characteristics and Features

Automatic
Yes
Base Material
Iron
Float Type
Tether Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Material
Cast Iron
Shutoff Head in Feet
37

Electrical and Operational Information

Amperage
4.6
Horsepower
0.5
Starting Amps
23 Amps
Voltage
208, 230
Wattage
920.00

Electrical and Operational Information

Amperage
4.6
Horsepower
0.5
Starting Amps
23 Amps
Voltage
208, 230
Wattage
920.00

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
