Liberty Pumps
Liberty Pumps 1/2 HP Cast Iron Submersible Sump/Effluent Pump (Non-Automatic) N/A
Alternate Image
Liberty Pumps 1/2 HP Cast Iron Submersible Sump/Effluent Pump (Non-Automatic) N/A
Alternate Image

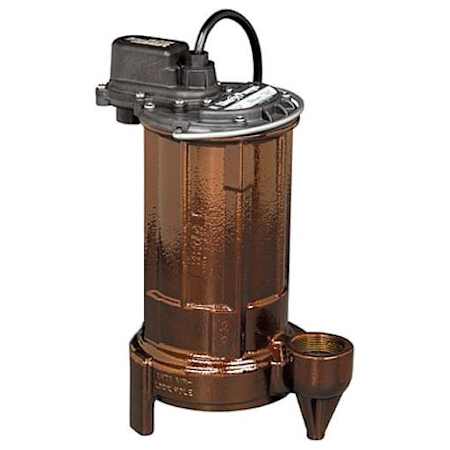

Liberty Pumps 1/2 HP Cast Iron Submersible Sump/Effluent Pump (Non-Automatic)

Model: 280 PUMP
|
Item: bci5171500

$314.25
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details



Features:

  • ***NON-AUTOMATIC - Requires Float Switch***

  • Submersible Cast Iron Sump Pump: For high head (up to 30') and/or high output applications

  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish: A solid, one-piece housing that eliminates lower motor seal

  • Rugged, Energy Efficient and Thermally Protected 1/2 HP Motor: Hermetically sealed, permanently lubricated design

  • High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling

  • High Capacity 1-1/2" Discharge: Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Standard Power Cord: Allows for easy replacement of cord without breaking motor seals

  • Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest sump pits

  • 416 Stainless Steel Rotor Shaft: With permanently lubricated bearings for extended pump life

  • Removable Stainless Steel Bottom Screen: Keeps larger debris from damaging the pump

  • 3-Year Limited Warranty


  •



Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5 in.
Flow Rate by Feet of Head
4080 gal / 0 ft, 3360 gal / 10 ft, 2940 gal / 15 ft, 2520 gal / 20 ft, 3750 gal / 5 ft
Height
13 in.
Length
9.5 in.
Maximum Diameter Solids
0.75 in.
Width
6.5 in.

Dimensions and Measurements

Cord Length
10 in.
Discharge Diameter
1.5 in.
Flow Rate by Feet of Head
4080 gal / 0 ft, 3360 gal / 10 ft, 2940 gal / 15 ft, 2520 gal / 20 ft, 3750 gal / 5 ft
Height
13 in.
Length
9.5 in.
Maximum Diameter Solids
0.75 in.
Width
6.5 in.

Included Components

Built-In Check Valve
No

Included Components

Built-In Check Valve
No

Characteristics and Features

Automatic
No
Base Material
Iron
Float Type
No Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Shutoff Head in Feet
37
Solid Handling
3/4 Inch
Submersible
Yes

Characteristics and Features

Automatic
No
Base Material
Iron
Float Type
No Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Shutoff Head in Feet
37
Solid Handling
3/4 Inch
Submersible
Yes

Electrical and Operational Information

Amperage
8
Horsepower
0.5
Starting Amps
23 Amps
Voltage
120

Electrical and Operational Information

Amperage
8
Horsepower
0.5
Starting Amps
23 Amps
Voltage
120

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Manufacturer Warranty
3 Year
