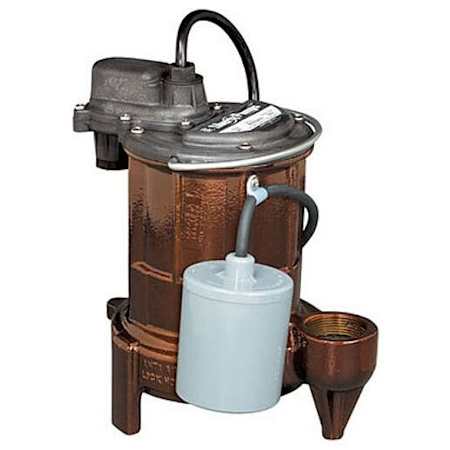

Liberty Pumps 1/3 HP Cast Iron Submersible Sump Pump with Integral Tether Float (25' Cord)
Model: 251-2|Item: bci5171534
Details
Features:
- Automatic Submersible Cast Iron Sump Pump: A "workhorse" designed for years of reliable operation
- Quick-Disconnect 25' Standard Power Cord: Great for outdoor applications when an outlet is farther away
- Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish: A solid, one-piece housing that eliminates lower motor seal
- Quick-Disconnect Wide Angle Tether Float Switch (Non-Piggyback): Provides automatic operation in sump pits as small as 14-inches
- Rugged, Energy Efficient and Thermally Protected 1/3 HP Motor: Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge: Will replace most pumps without any plumbing changes
- Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest sump pits
- 416 Stainless Steel Rotor Shaft: With permanently lubricated bearings for extended pump life
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 25 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 2250 gal / 10 ft, 720 gal / 20 ft, 2700 gal / 5 ft, 3000 gal / 0 ft, 1560 gal / 15 ft |
Height | 10.7 in. |
Length | 9.875 in. |
Maximum Diameter Solids | 0.5 in. |
Min Float Off | 4 in. |
Min Float On | 10 in. |
Product Weight | 24 lbs. |
Width | 6.5 in. |
Dimensions and Measurements
Cord Length | 25 in. |
Discharge Diameter | 1.5 in. |
Flow Rate by Feet of Head | 2250 gal / 10 ft, 720 gal / 20 ft, 2700 gal / 5 ft, 3000 gal / 0 ft, 1560 gal / 15 ft |
Height | 10.7 in. |
Length | 9.875 in. |
Maximum Diameter Solids | 0.5 in. |
Min Float Off | 4 in. |
Min Float On | 10 in. |
Product Weight | 24 lbs. |
Width | 6.5 in. |
Included Components
Built-In Check Valve | No |
Included Components
Built-In Check Valve | No |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Composite |
Manual Override | No |
Solid Handling | 1/2 Inch |
Submersible | Yes |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Float Type | Tether Switch |
Housing Material | Cast Iron |
Impeller Material | Composite |
Manual Override | No |
Solid Handling | 1/2 Inch |
Submersible | Yes |
Electrical and Operational Information
Amperage | 5.2 |
Backup GPH @ 0 feet | 3000 GPH |
Backup GPH @ 10 feet | 2250 GPH |
Backup GPH @ 15 feet | 1560 GPH |
Backup GPH @ 20 feet | 720 GPH |
Backup GPH @ 5 feet | 2700 GPH |
Horsepower | 0.33 |
Starting Amps | 8 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 5.2 |
Backup GPH @ 0 feet | 3000 GPH |
Backup GPH @ 10 feet | 2250 GPH |
Backup GPH @ 15 feet | 1560 GPH |
Backup GPH @ 20 feet | 720 GPH |
Backup GPH @ 5 feet | 2700 GPH |
Horsepower | 0.33 |
Starting Amps | 8 Amps |
Voltage | 120 |
Warranty and Product Information
Manufacturer Warranty | 3 |
Warranty and Product Information
Manufacturer Warranty | 3 |
